Postgres to PlanetScale migration guide
This guide covers how to do an import directly between a Postgres source database and a PlanetScale target. For this, we will be using the postgres-planetscale scripts. This method of importing can be slow. If you have a large database, you might consider trying an alternative, faster approach. You are encouraged to modify these scripts to suit your needs if need be.
Methodology
The scripts in this guide leverage AWS Database Migration Service to handle conversions between Postgres and MySQL types. Even if you are migrating from a non-AWS Postgres provider, such as Neon or Supabase, you will still need an AWS account to perform the migration.

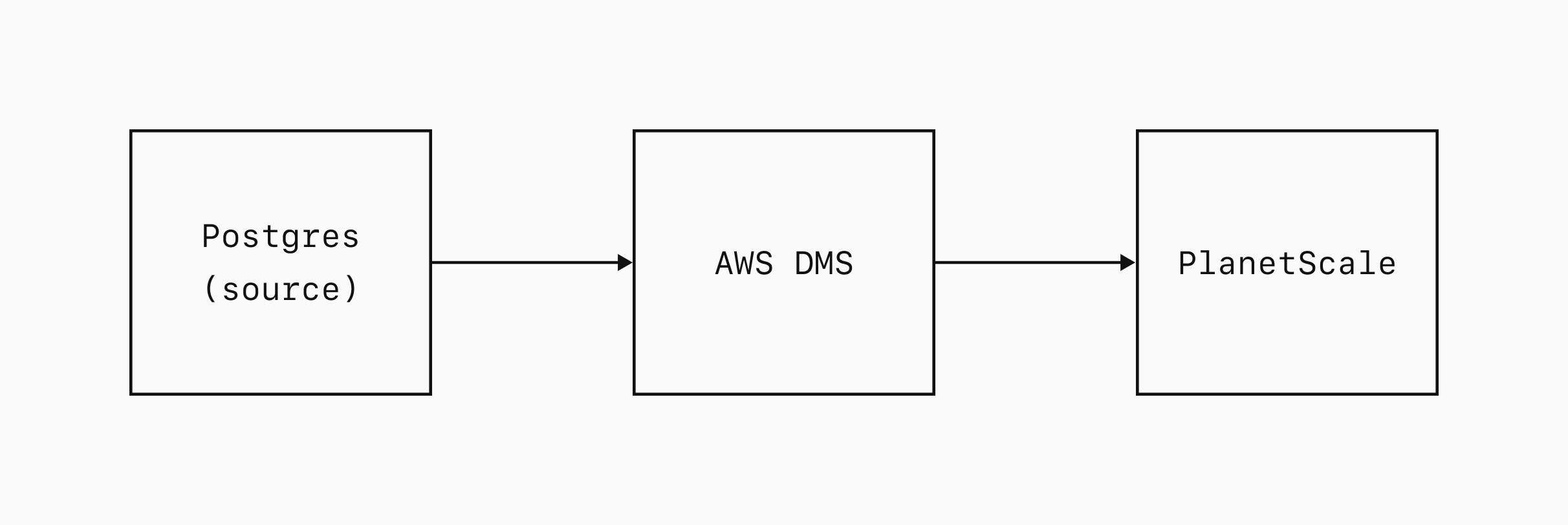

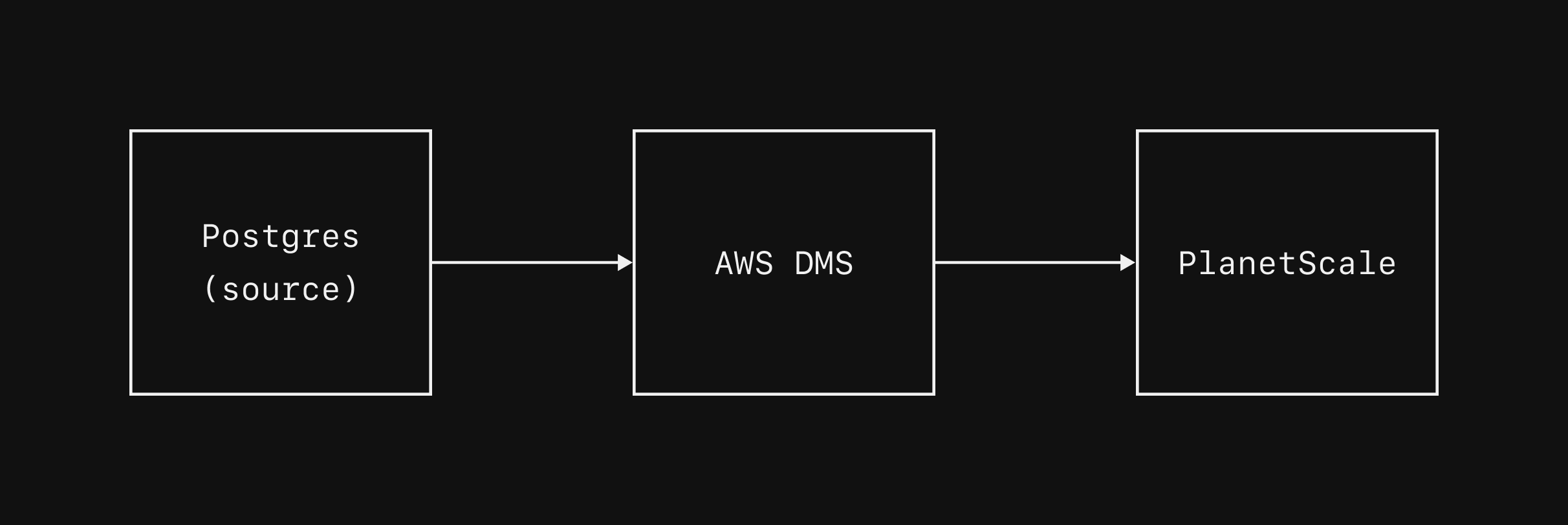

DMS acts as a middle-man between your Postgres source database and PlanetScale. All of your data will pass through the DMS server which will handle type conversions before passing the data on to your PlanetScale database. After the initial data copy, DMS will continue to replicate changes from your source to the target until you stop it. It is up to you to determine how to handle the cut over between the two in your application.
Prerequisites
- An AWS account
- An empty PlanetScale database as the target
- The AWS CLI
Warning
These import scripts create and modify resources in your AWS account. Before executing, you should read through the scripts to ensure you are comfortable with the actions they will take. You will also be billed in AWS for the resources it creates, which include:
- 1 DMS replication task
- 1 DMS replication instance
- 1 DMS replication subnet group
- 2 DMS endpoints
Importing a database
1. Prepare Postgres for migration
Before beginning a migration to PlanetScale, you should ensure the following flags are set on your Postgres database.
| flag name | flag value |
|---|---|
| logical_replication | 1 |
| shared_preload_libraries | pglogical |
Given the variety of Postgres options and versions, there may be additional flags that you will need to adjust to make the import work. If you encounter errors when using the script below, it may be caused by other Postgres options not shown here. You can either update your Postgres configuration based on the error you see, or contact support for additional assistance.
Warning
You should not make any schema changes to the source database during an import.
2. Install the AWS CLI
The migration scripts we provide rely on AWS Database Migration Service. To use the scripts, you need to download and install the AWS CLI. You will also need to authenticate into the AWS account that you would like to run the migration from. This step is necessary, even if you are importing from a non-AWS Postgres provider.
Go ahead and download and install the AWS CLI. On MacOS, you can run:
curl "https://awscli.amazonaws.com/AWSCLIV2.pkg" -o "AWSCLIV2.pkg" sudo installer -pkg AWSCLIV2.pkg -target /
On Linux, you run:
curl "https://awscli.amazonaws.com/awscli-exe-linux-x86_64.zip" -o "awscliv2.zip" unzip awscliv2.zip sudo ./aws/install
Full instructions can be found on the AWS documentation.
3. Authenticate into AWS
After installing the CLI, you must authenticate into the AWS account that you intend to run the import scripts in. There are several ways to authenticate. You can find instructions in the AWS documentation. We recommend you authenticate with short-term credentials. The authenticated account will need permissions to both create and modify DMS resources, security groups, and parameter groups.
4. Customizing import of large tables
If you have large tables that are in need of a parallel import, you should specify custom rules for these to give to DMS.
For example, perhaps we have a large table named items that contains 1 million rows. We would like DMS to import this in parallel with multiple threads. To configure this, create a json file named custom-table-mappings.json and place this in there:
{
"rules": [
{
"object-locator": {
"schema-name": "public",
"table-name": "items"
},
"parallel-load": {
"boundaries": [
["250000"],
["500000"],
["750000"]
],
"columns": ["item_id"],
"type": "ranges"
},
"rule-id": "3",
"rule-name": "parallel-load-settings",
"rule-type": "table-settings"
}
]
}
These rules will be used to tell DMS that it can load the table in 4 parallel threads. It can load rows with item_id ranges 0-250k, 250k-500k, 500k-750k, and 750k+ in separate threads.
You can add multiple rules here if there are multiple large tables. You do not need to specify custom rules for small tables.
If you use custom rules, ensure you pass this file to the import.sh script in the next step via --table-mappings custom-table-mappings.json.
Learn more about the options available to you here in the AWS table mappings documentation.
5. Begin the import
Check out the migration-scripts repository, and navigate to the postgres-planetscale directory.
git clone https://github.com/planetscale/migration-scripts cd migration-scripts/postgres-planetscale
Since these scripts will be running in your AWS account, it is important that you understand what the scripts are doing before executing them. Before running, look through the scripts and confirm what they will be doing in your AWS account is acceptable to you and your organization. At a high level, the import.sh script does the following:
- Creates a new DMS source and target using the credentials you provide
- Creates a DMS import instance (a server to handle the migration)
- Creates / modifies the subnets so the databases can communicate with DMS
- Sets up rules for how to handle the migration and how to map tables between the source and target
- Begins the DMS migration task to copy data between the two instances
- After initial data copy is complete, continues to replicate the data between the instances until you are ready to stop the task
If there are any concerns, you should modify the scripts to suit your needs.
If you are comfortable proceeding, the next step is to execute the import.sh script. You will need to provide this with a unique identifier for this import, as well as the connection credentials for both the source Postgres database and the target PlanetScale database.
Note
If you are importing from Supabase, the scripts will not work with a transaction pooler or session pooler connection. You must use a direct connection over ipv4. In order to use this, you must be on the pro plan or greater, and pay for the ipv4 connection upgrade. After doing so, use the direct connection credentials and host when using import.sh.
If you are importing from Neon, You must use --tls mode when importing from Neon. This sets SSL_MODE="require" on the connection, a necessity for Neon.
Here's an example of executing this:
sh import.sh --identifier "PGtoPSImport01" \
--source "${PG_USER}:${PG_PASSWORD}@${PG_HOST}/${PG_DB}/${PG_SCHEMA}" \
--target "${PS_USER}:${PS_PASSWORD}@${PS_HOST}/${PS_DB}"
You can choose whatever identifier you want in place of PGtoPSImport01. The variables prefixed with PG_ are for the Postgres source, and the ones prefixed with PS_ are for the PlanetScale target.
Running the script like this will give you occasional log messages indicating which phase of the import process it is at. If you want full debug mode, including each command the script executes, add the --debug flag:
sh import.sh --identifier "PGtoPSImport01" \
--source "${PG_USER}:${PG_PASSWORD}@${PG_HOST}/${PG_DB}/${PG_SCHEMA}" \
--target "${PS_USER}:${PS_PASSWORD}@${PS_HOST}/${PS_DB}" \
--debug
If you are running the script for the first time, we recommend using --debug in case you encounter any issues needing debugging.
6. Completing the import
The import.sh script can take upwards of 20 minutes to prepare all of the resources before even beginning the import. After this, the time for the import itself varies widely depending on the size and load of your database. You should monitor the progress of the migration by comparing row counts in PlanetScale to ones from the source.
Once the migration is complete, it is up to you to determine when you want to cut over your application to use PlanetScale as your primary database instead of the old Postgres source. Before doing this, you should ensure all of your queries are updated to work properly with PlanetScale and do some performance testing. If you encounter performance issues, you likely need to add indexes. Use PlanetScale Query Insights to discover and improve poor performing queries.
7. Cleaning up the import
When you have fully switched all traffic over to PlanetScale and are comfortable stopping the replication between Postgres and PlanetScale, you can use the cleanup.sh script to delete the DMS resources that import.sh created. All you have to provide is the --identifier that you used when starting the import.
sh cleanup.sh --identifier "PGtoPSImport01"
We recommend double checking that all of the resources were properly cleaned up in your AWS console after running this.
Resolving errors
We have designed these scripts to run as generally as possible and have tested them on a variety of platforms. Even so, you may encounter errors for a variety of reasons.
In some cases, the aws command that fails will produce a useful error message in the script output, which you can take action on as needed.
If the script is able to set up all of the resources without error but the import is not working, we recommend you take a look at the migration task logs. You can view and search through these in the AWS web console.

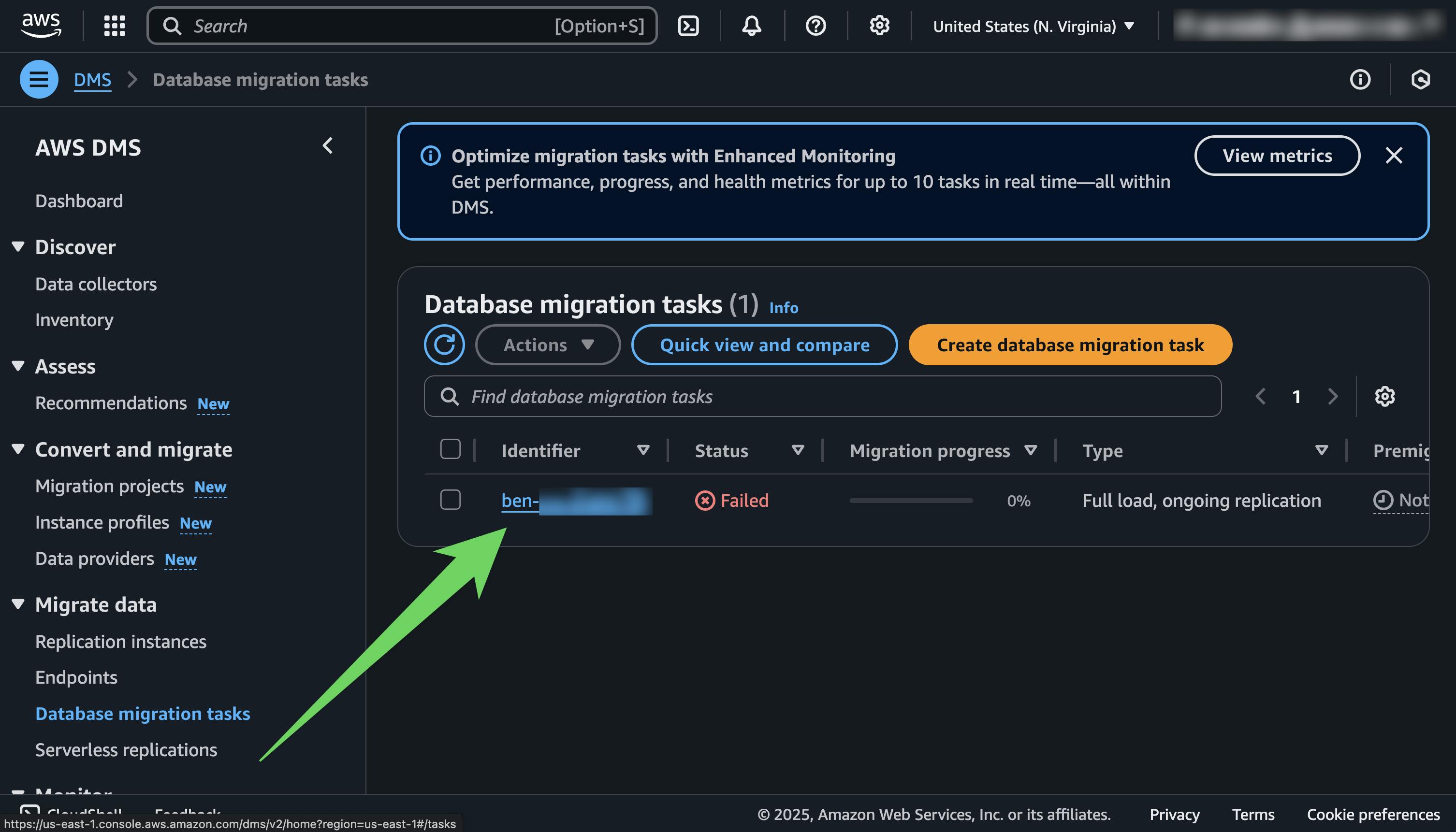

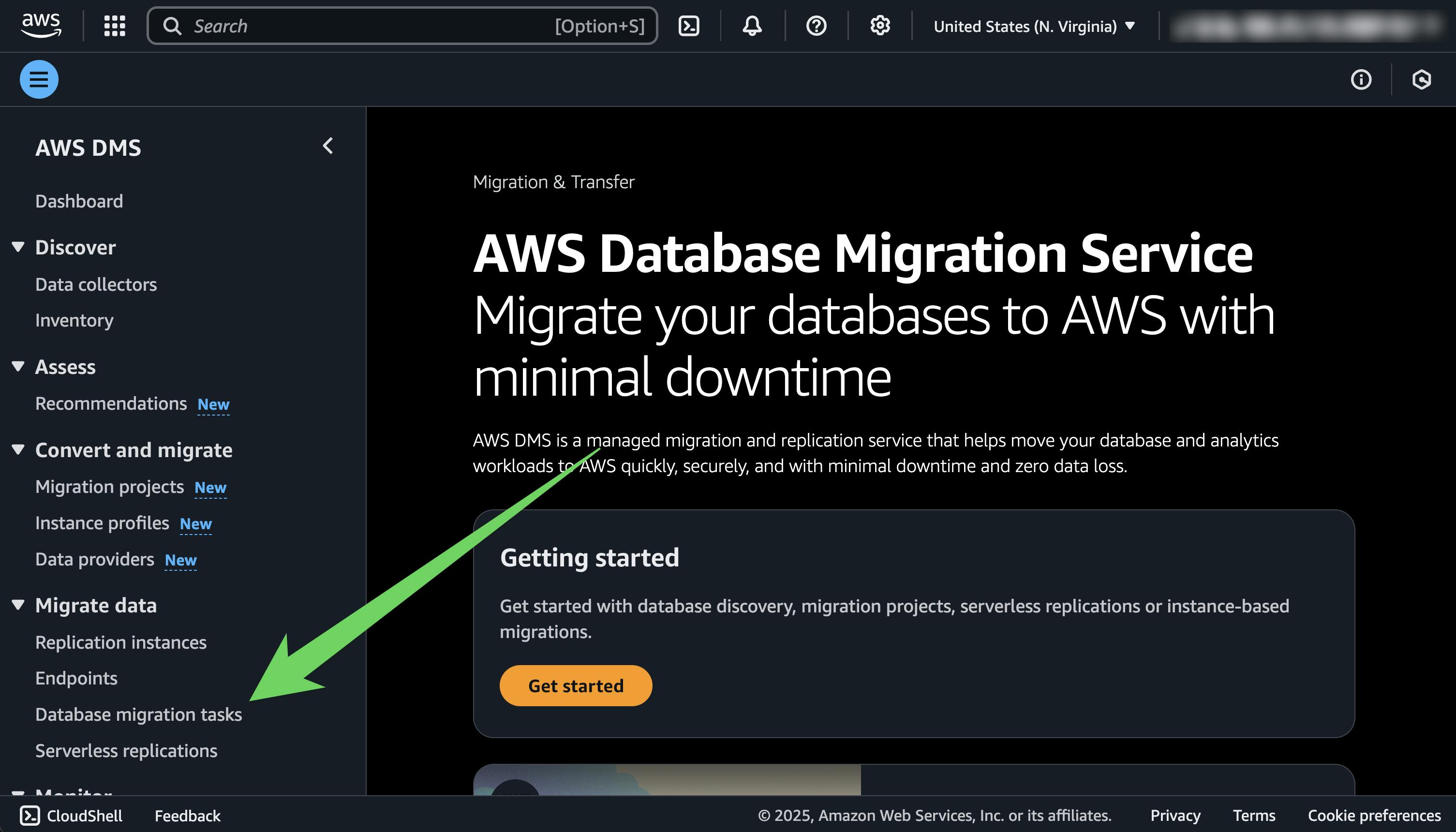

Log in to the web console, and go to the AWS DMS service page. In the sidebar, click on "Database migration tasks."
You should see a migration task in the list with a name that corresponds to the identifier you chose.
Click on the migration task, and then click "View logs" in the top right corner.

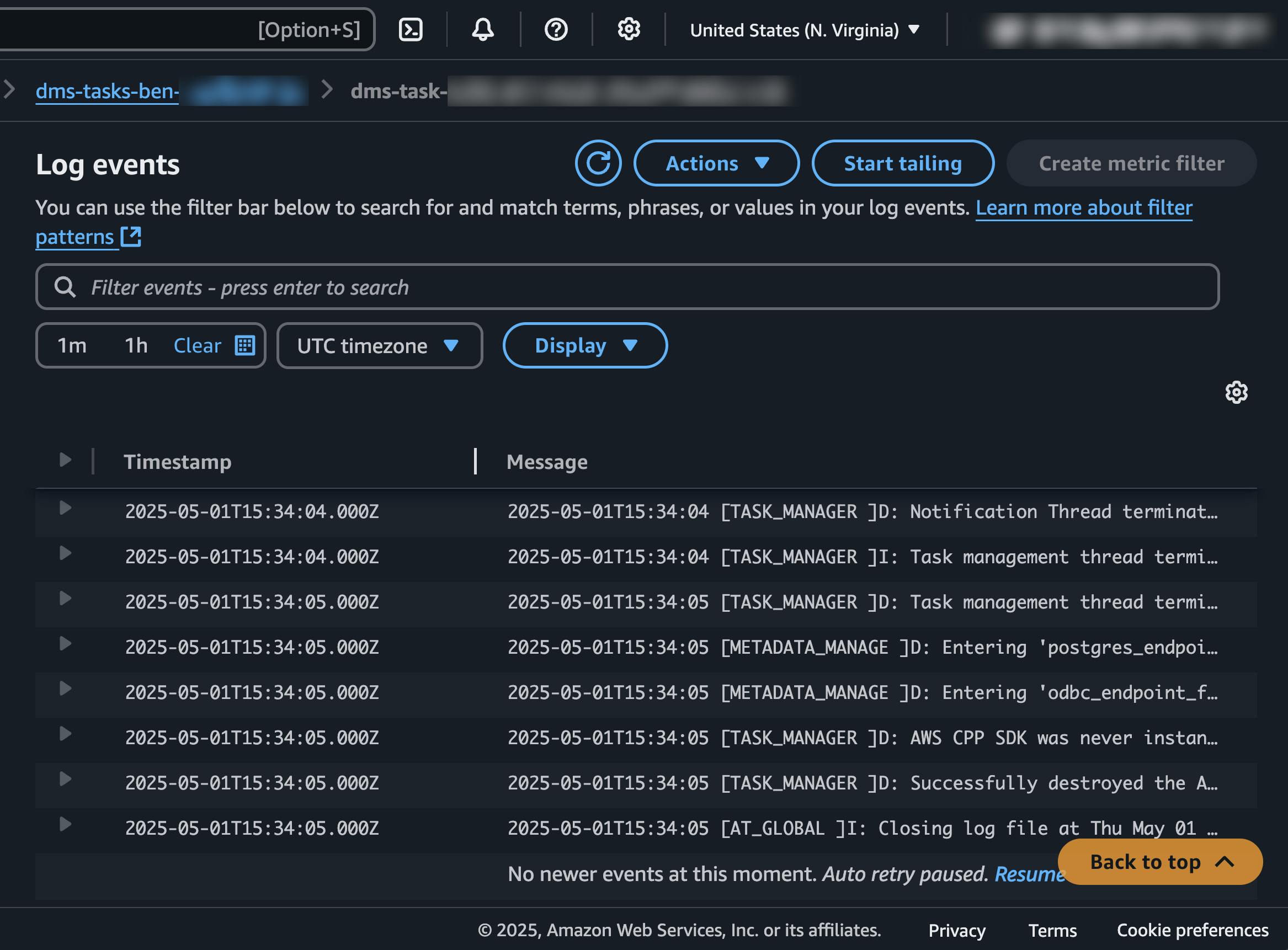

This will bring you to your CloudWatch logs for this replication task, and you can search through it for error and warning messages to help you pinpoint the issue.
