We implemented an Stitch Singer Tap as the pipeline between your PlanetScale source and selected destination. This document will walk you through how to connect your PlanetScale database to Stitch.

​
How to connect

​
Step 1 : Setup an Import API integration in Stitch.

PlanetScale’s Stitch tap outputs records and metadata to stdout so that the http tap can import them into Stitch via Stitch Import API.
1
Sign up for a StitchData account
2
Once you’ve signed up, create an Integration by clicking on Add Integration.
3
On the marketplace screen, type in import to narrow the list down to the Import API

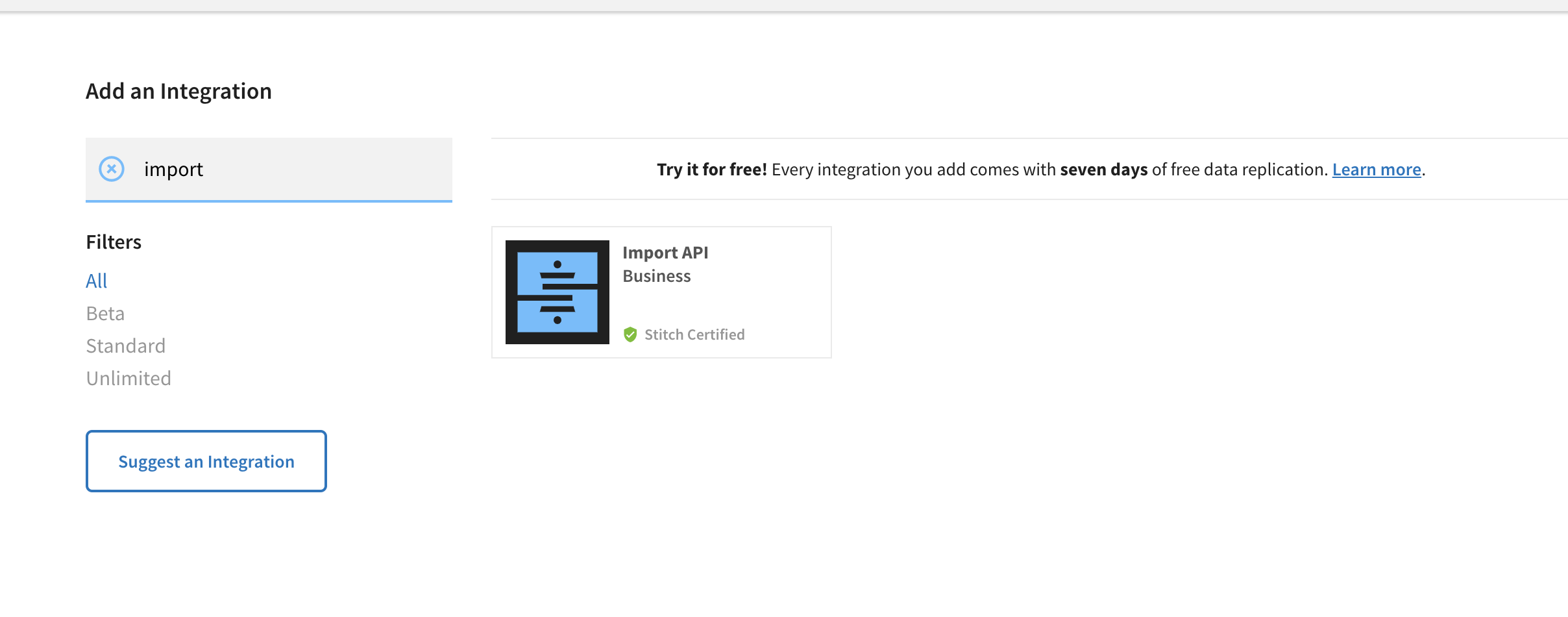

Add Stitch Integration
4
On the next screen, configure your integration name and destination.

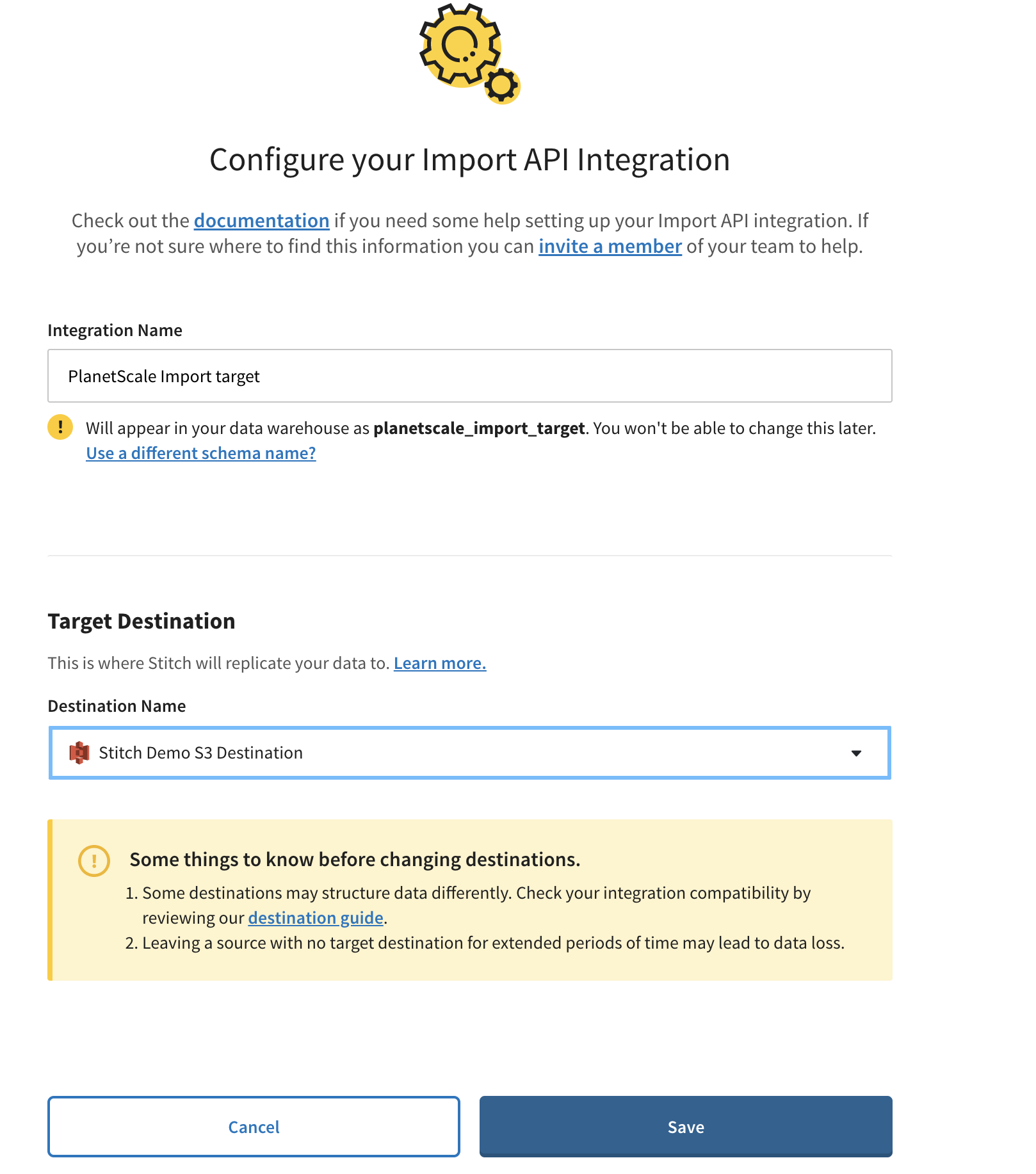

Configure Stitch Integration
5
Once the integration is created, save the access token for use with the PlanetScale tap.

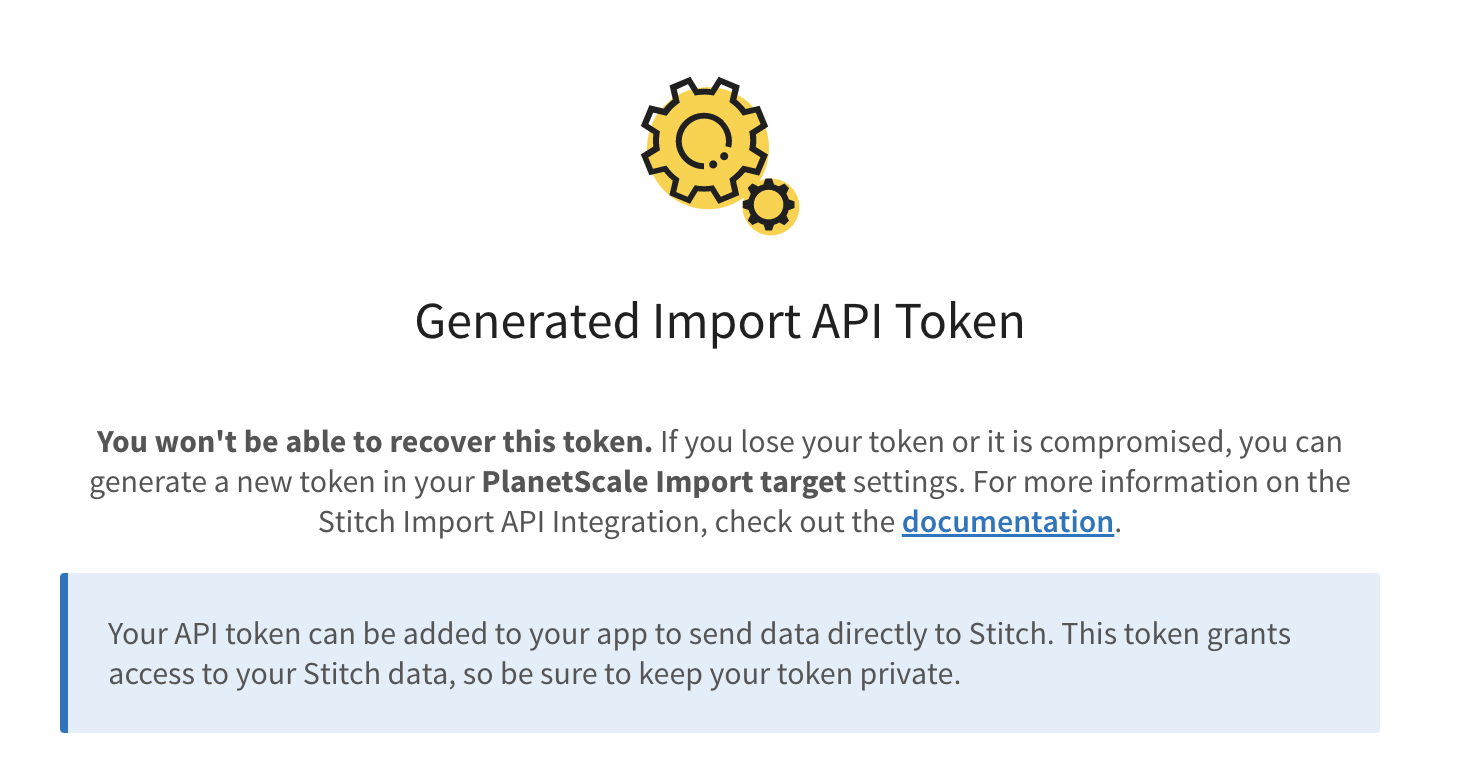

Save Stitch API Token

​
Step 2 : Configure the PlanetScale Stitch Tap

In this step, we will connect your PlanetScale database to the PlanetScale Singer Tap.
1
Click on the database and branch you want to connect to.
2
Click “Connect”, and select “Stitch source” from the “Connect with” dropdown.
3
Leave this tab open, as you’ll need to copy these credentials shortly.

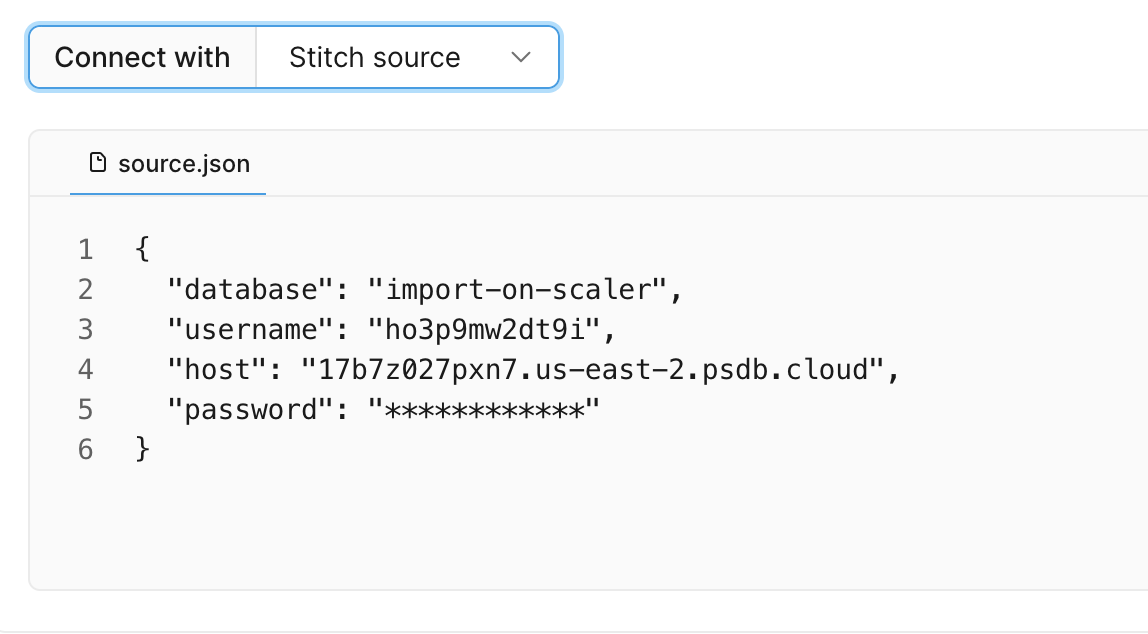

Stitch Source config
4
Copy the contents of source.json as a file on your local file system, and save it as source.json. This will now act as the PlanetScale source config when connecting the PlanetScale Stitch Tap to your database.

​
Step 3: Run the PlanetScale Stitch Tap

1
Install the PlanetScale Singer tap by running:
brew install planetscale/tap/ps-singer-tap
2
Install the PlanetScale Http tap by running
brew install planetscale/tap/ps-http-tap
3
Save the schema for your PlanetScale database.
ps-singer-tap --config source.json  --discover > schema.json
4
The schema.json file you saved in the previous step is a JSON document that describes all tables & columns available in your PlanetScale database. By default, no tables/columns are selected. You can select a column or table by setting its selected property in the table’s metadata element in the JSON document to be true. Here’s an example of selecting the dept_no property in a table.
{
  "metadata": {
    "selected": true,
    "inclusion": "available",
    "breadcrumb": ["properties", "dept_no"]
  }
}
5
Sync your PlanetScale database to Stitch by running the following command:
ps-singer-tap --config source.json  --catalog schema.json | ps-http-tap  --api-token $(cat access_token)
6
You should see an output similar to this:
PlanetScale Tap : INFO : Syncing records for PlanetScale database : import-on-scaler
PlanetScale Tap : INFO : syncing rows from stream "departments" from shard "-"
PlanetScale Tap : INFO : [departments shard : -] peeking to see if there's any new rows
PlanetScale Tap : INFO : new rows found, syncing rows for 1m0s
PlanetScale Tap : INFO : [departments shard : -] syncing rows with cursor [shard:"-" keyspace:"import-on-scaler"]
PlanetScale Tap : INFO : Syncing with cursor position : [], using last known PK : false, stop cursor is : [MySQL56/e42292e8-e28f-11ec-9c5b-d680f5d655b3:1-705,e4e20f06-e28f-11ec-8d20-8e7ac09cb64c:1-26,eba743a8-e28f-11ec-9227-62aa711d33c6:1-20]
PlanetScale Tap : INFO : [departments shard : -] Continuing with cursor after server timeout
PlanetScale Tap : INFO : [departments shard : -] peeking to see if there's any new rows
HTTP Tap : INFO : flushing [20] messages for stream "departments"
PlanetScale Tap : INFO : [departments shard : -] no new rows found, exiting
HTTP Tap : INFO : Server response status : "OK", message : "Batch accepted"
HTTP Tap : INFO : flushing [1] messages for stream "departments"
HTTP Tap : INFO : Server response status : "OK", message : "Batch accepted"
HTTP Tap : INFO : saving state to path : state/state-1656850746251.json
7
Any state outputted by the PlanetScale Tap will be saved and you can look at the logs for the location. Here is an example of outputted state:
HTTP Tap : INFO : saving state to path : state/state-1656850746251.json
8
In this example, you should see that Stitch loaded 21 records to be replicated.

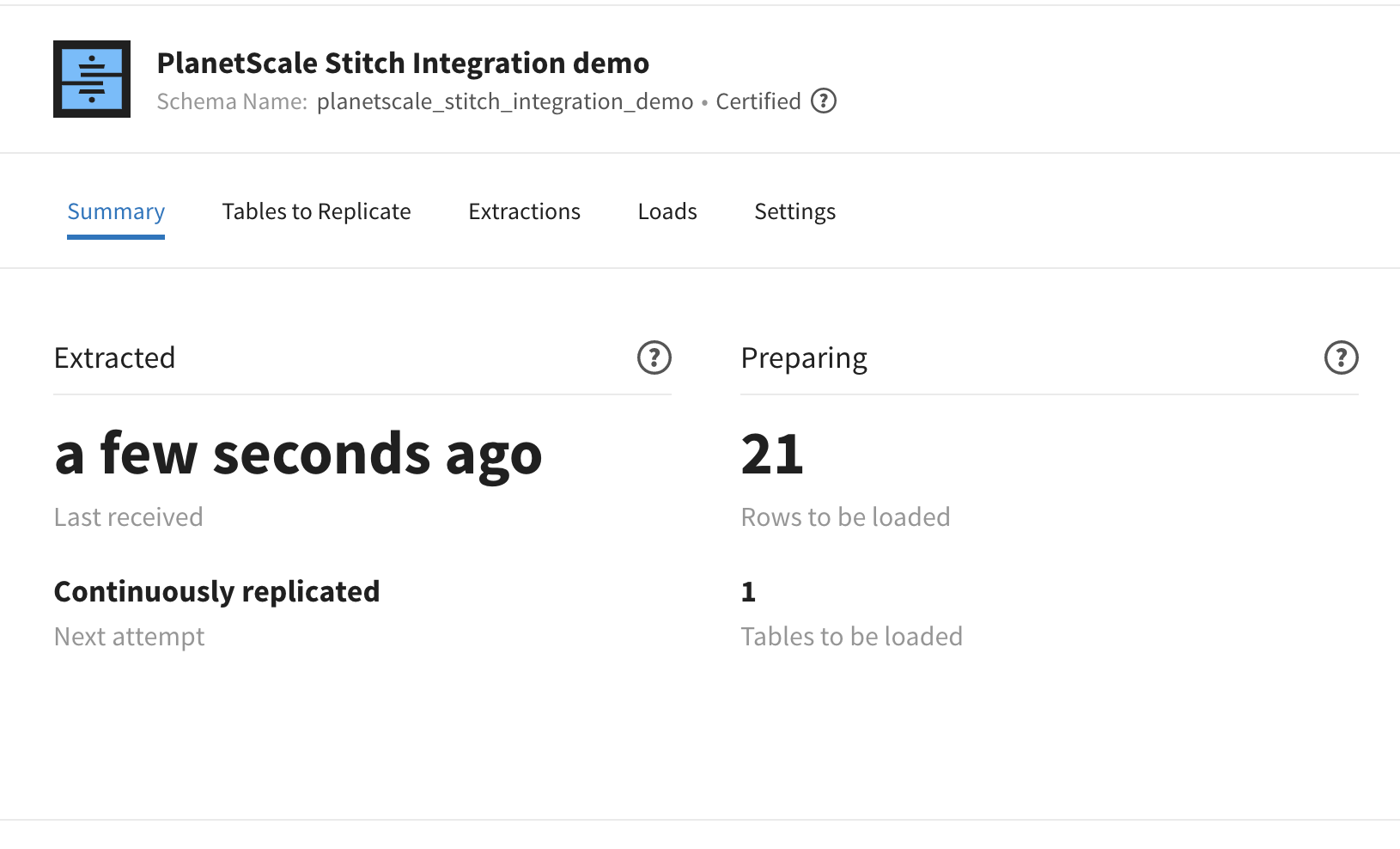

Completed Stitch import
9
To incrementally sync from this last sync position, pass the path to last saved state in step 7 as the --state argument when you run sync.

​
