Overview

This document will demonstrate how to migrate a database from Azure Database for MySQL to PlanetScale. We recommend reading through the Database import documentation to learn how imports work before proceeding.

​
Prerequisites

Before you can perform the migration, you’ll need to gather the following information from you MySQL instance in Azure:
  • Server name
  • Server admin login name
  • Server admin password
  • Database name
The server name and admin login name can be located on the Overview tab of the MySQL instance in Azure.
The server name and server admin login name located in the Azure dashboard.
The server admin password is the same password you set when initially creating the database instance. To view your available databases, select the Databases tab from the sidebar.
The databases tab of the Azure dashboard.

​
Configure firewall rules

In order for PlanetScale to connect to your Azure database, you must allow traffic into the database through the associated security group. The specific IP addresses you will need to allow depend on the region you plan to host your PlanetScale database. Check the Import public IP addresses page to determine the IP addresses to allow before continuing. This guide will use the AWS us-east-1 (North Virginia) region so we’ll allow the following addresses:
To allow traffic into your Azure database, navigate to the “Networking” section from the sidebar and locate the Firewall rules section. There are already a series of inputs allowing you to add entries into the Firewall rules, each of which will permit network traffic from that IP address. Add a new entry for each address required, then click “Save” from the toolbar.

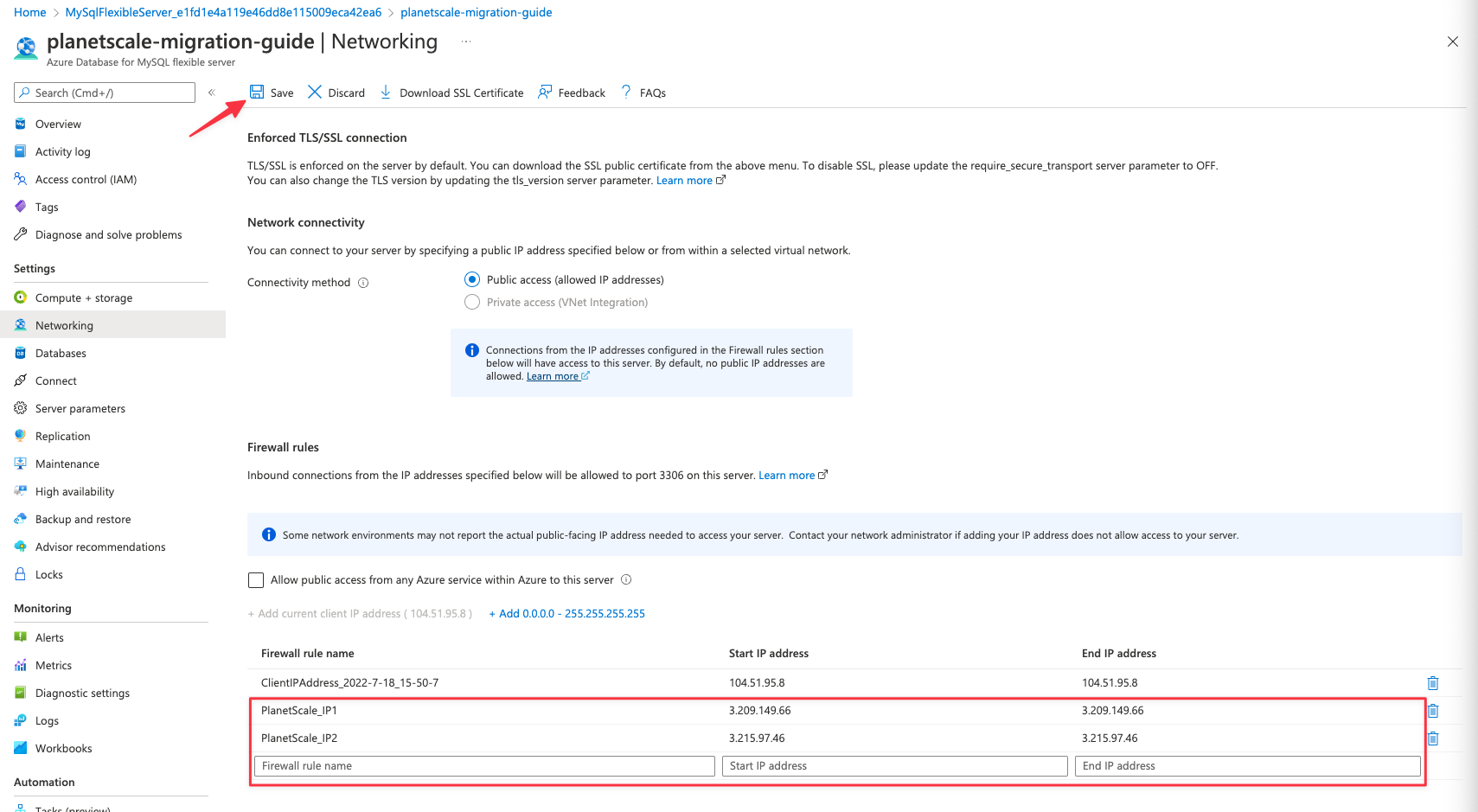

The networking tab of the Azure dashboard.

​
Configure MySQL server settings

There are three settings that need to be configured before you can import your database:
  • gtid_mode
  • enforce_gtid_consistency
  • binlog_row_image
To access these settings in Azure, select “Server parameters” from the sidebar and enter “gtid” in the search bar. Set both “enforce_gtid_consistency” and “gtid_mode” to “ON”. Next, search for “binlog_row_image” and set to “full”. Click “Save”.
For “gtid_mode”, you’ll need to update the value in sequence displayed in the dropdown until it is set to “ON”. For example, if the current setting is “OFF_PERMISSIVE”, you’ll need to first change it to “ON_PERMISSIVE”, save the changes, then set it to “ON” in that order.

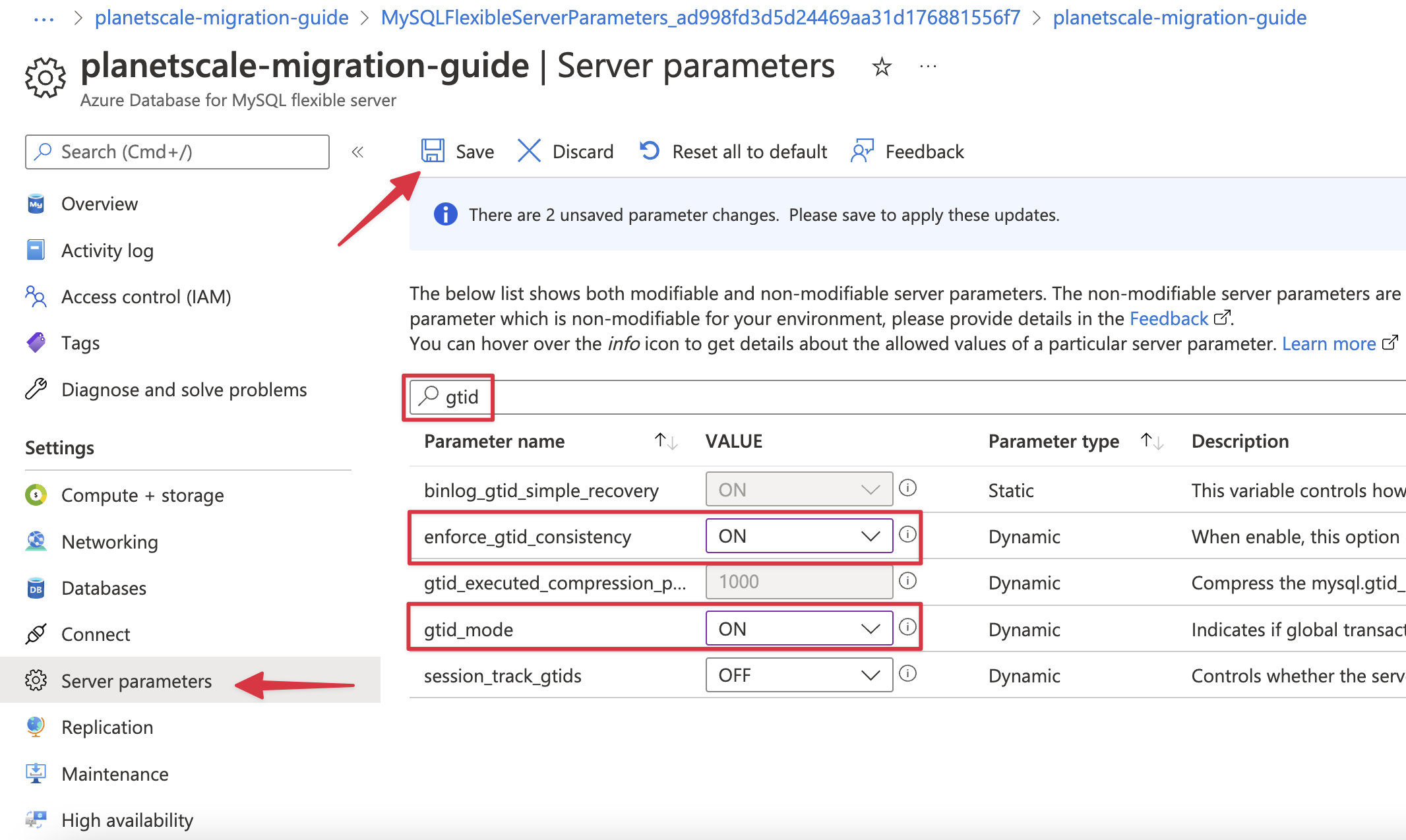

How to access gtid settings in the Azure dashboard.

​
Import your database

Now that your Azure Database for MySQL is configured and ready, follow the Database imports guide to complete your import. When you create the external keyspace, use the following connection settings:
  • Host name (--host) - Your Azure server name (from Prerequisites)
  • Port (--port) - 3306 (default for Azure MySQL)
  • Database name (--source-database) - The exact database name to import
  • Username (--username) - Your server admin login name
  • Password (--password) - Your server admin password
  • SSL verification mode (--ssl-mode) - verify_identity (verify the certificate and hostname)
The Database imports guide will walk you through:
  • Creating your PlanetScale database
  • Connecting to your Azure MySQL database with an external keyspace
  • Checking your server settings, user grants, and schema
  • Starting the import with MoveTables
  • Monitoring the import progress
  • Switching traffic and completing the import

​
Need help?

Get help from the PlanetScale Support team, or join our Discord community to see how others are using PlanetScale.
