PlanetScale is now available on Microsoft Azure. Starting today, you can create PlanetScale Postgres and Neki databases in select Azure regions, alongside the AWS and Google Cloud regions we already support. Vitess databases are not currently available on Azure.
Why Azure?
Many teams run their apps on Azure, and we've received consistent requests, especially over the past year, to bring PlanetScale to where they're building. Now those teams can use PlanetScale alongside all their other Azure compute and infrastructure.
What's included?
Databases on Azure get the same PlanetScale features you use on our other clouds: high availability with a primary and replicas spread across 3 availability zones, Query Insights, schema recommendations, automated backups, and more. That includes Metal clusters with locally attached NVMe storage, the fastest way to run databases in the cloud.
Supported Azure regions
Azure support is currently available in the following regions:
centralus(Iowa, USA)eastus2(Virginia, USA)westeurope(Netherlands)
If you'd like to see PlanetScale in other Azure regions, let us know. See the regions documentation for the full list across all cloud providers.
What it took
Bringing PlanetScale to a new cloud took significant time, particularly in testing and ensuring it behaves just as seamlessly on Azure as it does on AWS and GCP. Every cloud has its quirks, and Azure is no exception.
Kubernetes pod networking is a good example. PlanetScale runs databases on Kubernetes, and every database pod needs its own IP address on the network. We wanted those addresses to come from the Azure virtual network directly, with native routing and no overlay for maximum performance and low latency.
The simple approach is to request one IP from Azure per pod, which causes two problems. Azure caps a virtual network at 65,536 private IP addresses, which would limit the whole network to about 65,000 pods. It also puts the Kubernetes API server in the path of every pod start, which slows things down under load.
We solved both by handing out addresses in blocks. Each node gets blocks of 16 IPs (/28 prefixes) on its network interface, and Azure counts each block as a single address toward the cap. That increases our overall IP capacity by 16x, to over a million pod IPs per network. A background service on each node tracks its blocks, and a lightweight CNI plugin assigns pod IPs from them locally, so the API server stays out of the way. When a node gets down to 8 free addresses, it grabs another block, up to 256 blocks (4,096 pod IPs) per node.
This sounds like a simple solution, but it took a surprising amount of custom work to get just right.
Azure had a few additional networking challenges along the way. /28 is the only block size it offers, so the design had to work around that. Older versions of the network interface API don't return prefixes at all, and the block's range comes back in a field normally used for a single address. There's also a chicken-and-egg problem: system pods need IPs before the Kubernetes operator that manages the blocks is running. To handle that, the operator has a bootstrap mode that runs on the host network.
In scale testing, one cluster ran over 6,700 pods across more than 100 node pools, with the busiest nodes holding 15 blocks (240 IPs) each.
This is just one of many pieces we had to carefully construct to make PlanetScale on Azure a seamless experience for our customers. Storage, load balancing, identity, and backups all needed the same level of care. All of that work culminates in today's launch.
Getting started

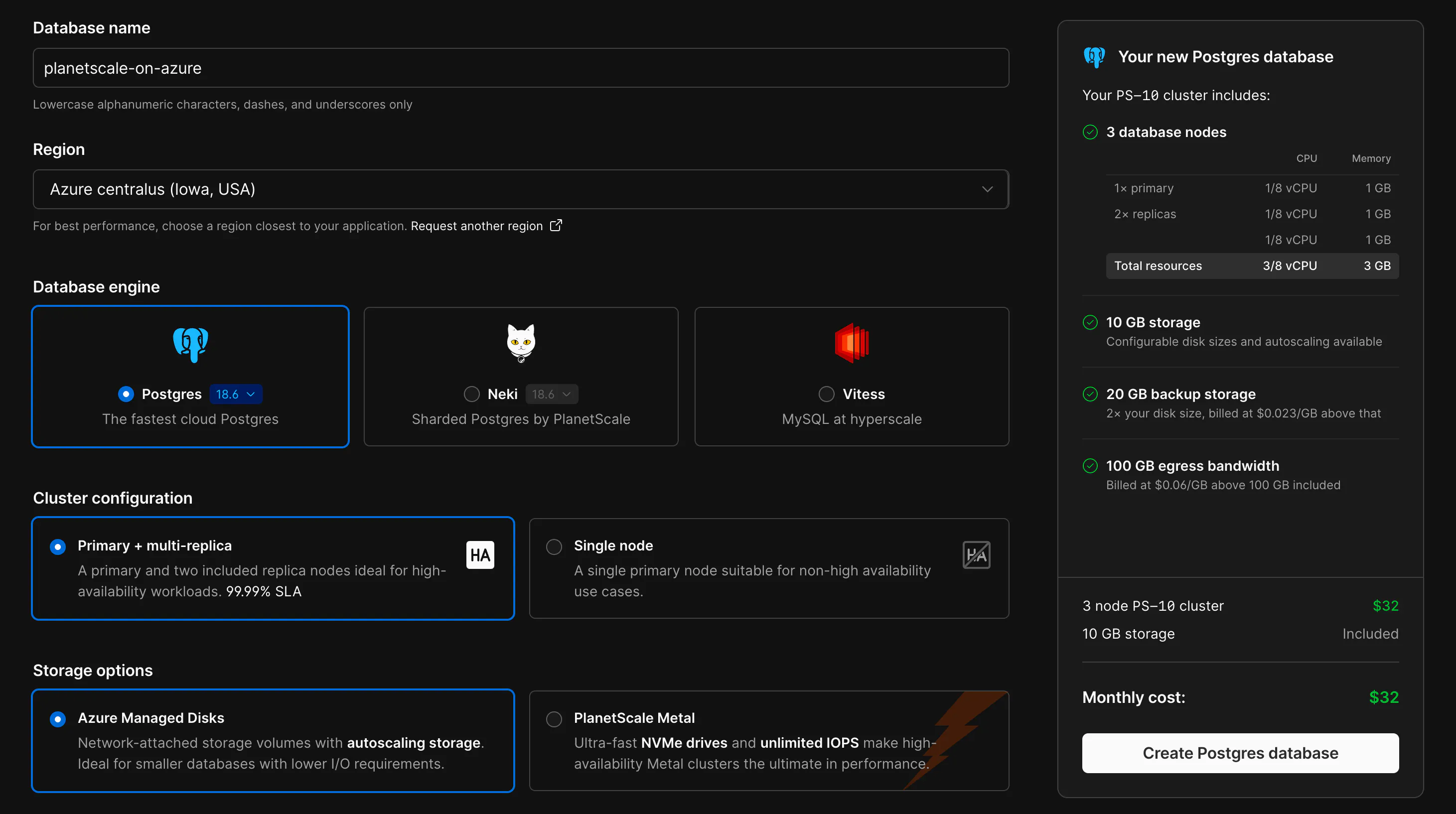

To create a database on Azure, choose Azure as the cloud provider when you create a new database, then select a region. Existing databases can be migrated to Azure by contacting support.
If you have questions or want help planning a move, get in touch.
