PlanetScale for Postgres architecture

Postgres

(Updated )

Overview

PlanetScale for Postgres is a managed PostgreSQL service built on modern cloud infrastructure. Our architecture provides high availability through availability zone distribution, automated failover, and redundancy across multiple components. PlanetScale for Postgres is built around a shared nothing architecture in alignment with PlanetScale's principles of extreme fault tolerance.

This document explains the core components of our PostgreSQL infrastructure, from regional deployment patterns to cluster configuration options and operational capabilities.

Regional and availability zone architecture

Geographic distribution

PlanetScale for Postgres deploys database clusters across multiple availability zones within a single region. This design provides:

  • Zone-level fault tolerance: Database instances are automatically distributed across separate availability zones
  • Network isolation: Each availability zone operates independently with its own network infrastructure

Cluster design

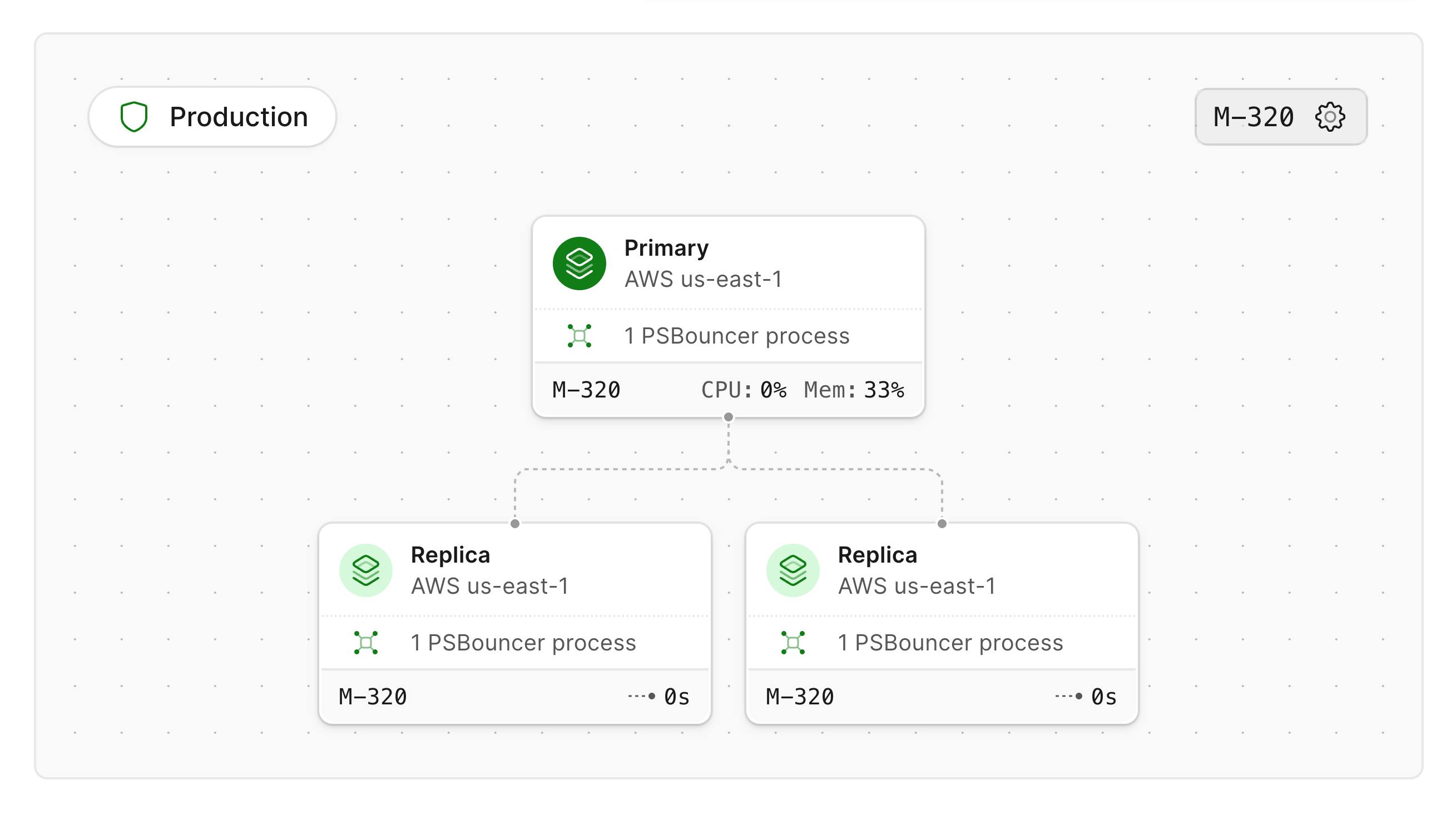

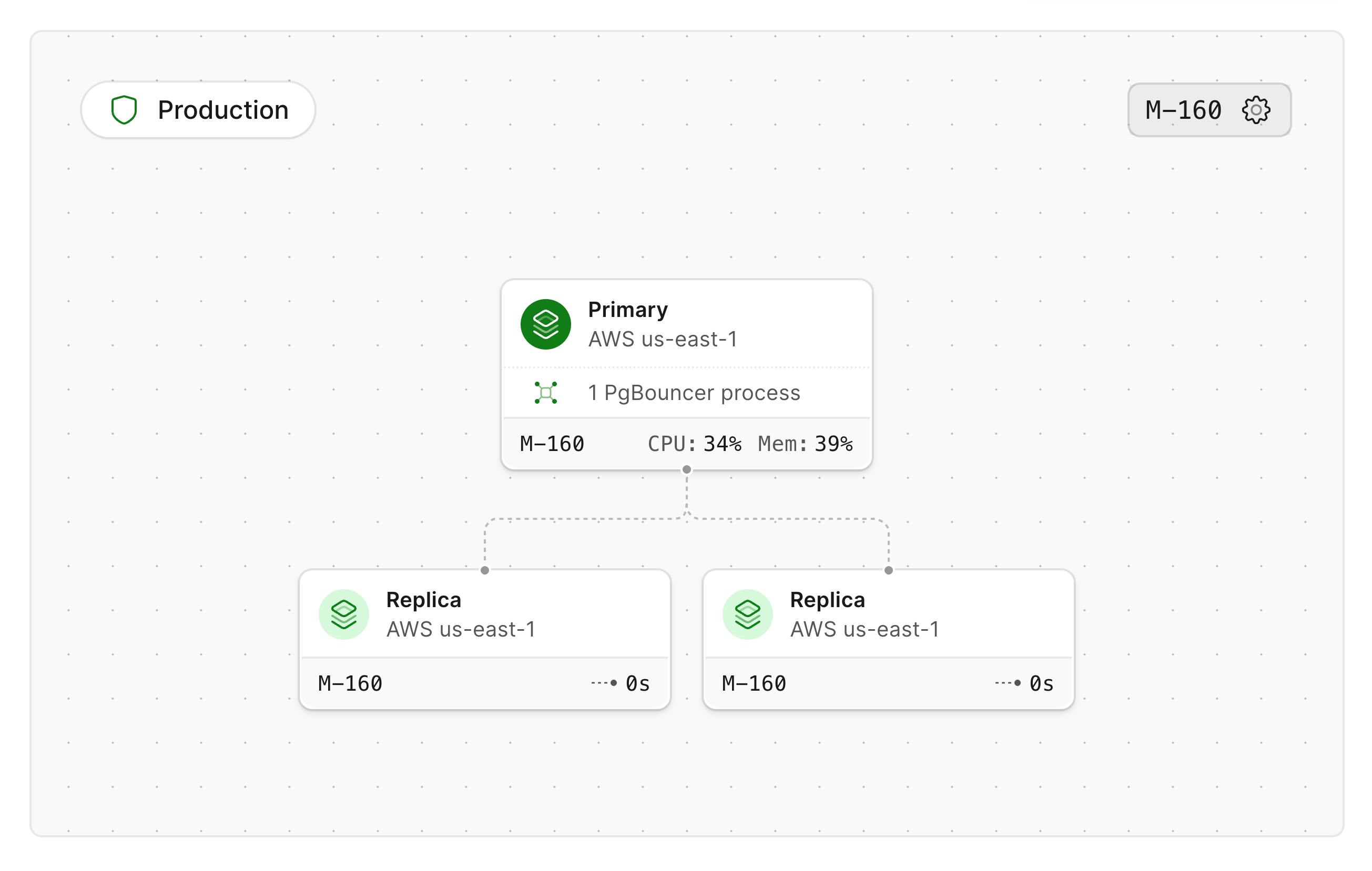

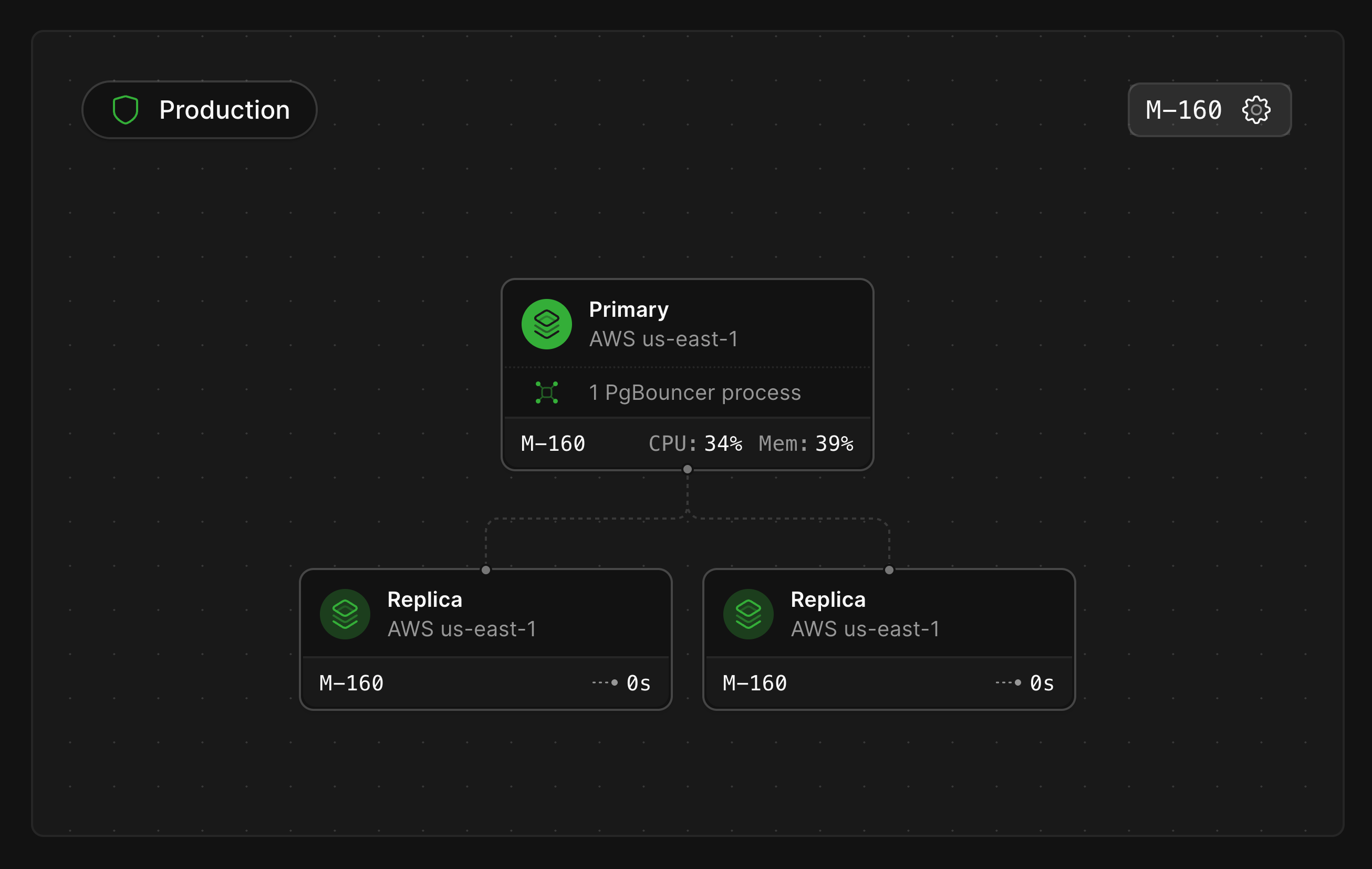

PlanetScale for Postgres cluster topology

PlanetScale for Postgres uses a primary-replica architecture distributed across availability zones to provide high availability without compromising performance. This design ensures that your database can survive infrastructure failures while maintaining fast read and write operations.

Primary-replica architecture

Each production PostgreSQL cluster consists of:

Primary instance (1):

  • Handles all write operations
  • Located in one availability zone
  • Serves read operations when replicas are unavailable
  • Source of truth for data replication

Replica instances (2):

  • Handle read-only operations
  • Located in separate availability zones from primary
  • Continuously synchronized with primary through streaming replication
  • Available for promotion to primary during failover events

Orchestration layer

The orchestration layer manages the lifecycle, health, and operations of PostgreSQL clusters across multiple availability zones. This infrastructure layer handles everything from initial deployment to ongoing maintenance and failover operations.

Kubernetes-based management

Our PostgreSQL clusters run on Kubernetes infrastructure, providing:

  • Automated deployment: Consistent cluster provisioning across availability zones
  • Health monitoring: Continuous monitoring of database instance health
  • Resource management: Dynamic allocation of compute and storage resources
  • Configuration management: Centralized management of PostgreSQL parameters and settings

Custom operator

Our custom Kubernetes operator manages all cluster nodes and handles PostgreSQL operations that would otherwise require deep database knowledge. Based on our extensive experience running databases at massive scale, our operator was built for rock-solid handling of PostgreSQL replication, backup requirements, and the specific steps needed for safe failover operations:

  • Failover coordination: Automated promotion of replica instances when primary fails
  • Backup scheduling: Coordinated backup operations across all instances
  • Configuration synchronization: Ensures consistent settings across primary and replicas
  • Scaling operations: Manages instance resizing and replica addition/removal

Data replication

Streaming replication: PostgreSQL's built-in streaming replication keeps replicas synchronized with the primary in near real-time. Changes are continuously streamed to replicas, ensuring data consistency across all instances:

  • Continuous data streaming from primary to replicas
  • Changes confirmed by at least one replica
  • Automatic lag monitoring and alerting

Connection routing:

  • Port 5432: Direct PostgreSQL connections
  • Port 6432: PSBouncer connection pooling for optimized connection management
  • SSL/TLS encryption required for all connections

Instance configurability

PlanetScale for Postgres offers flexible instance configuration to match your workload requirements and cost constraints. You can choose different CPU architectures, storage types, and performance characteristics to optimize for your specific use case.

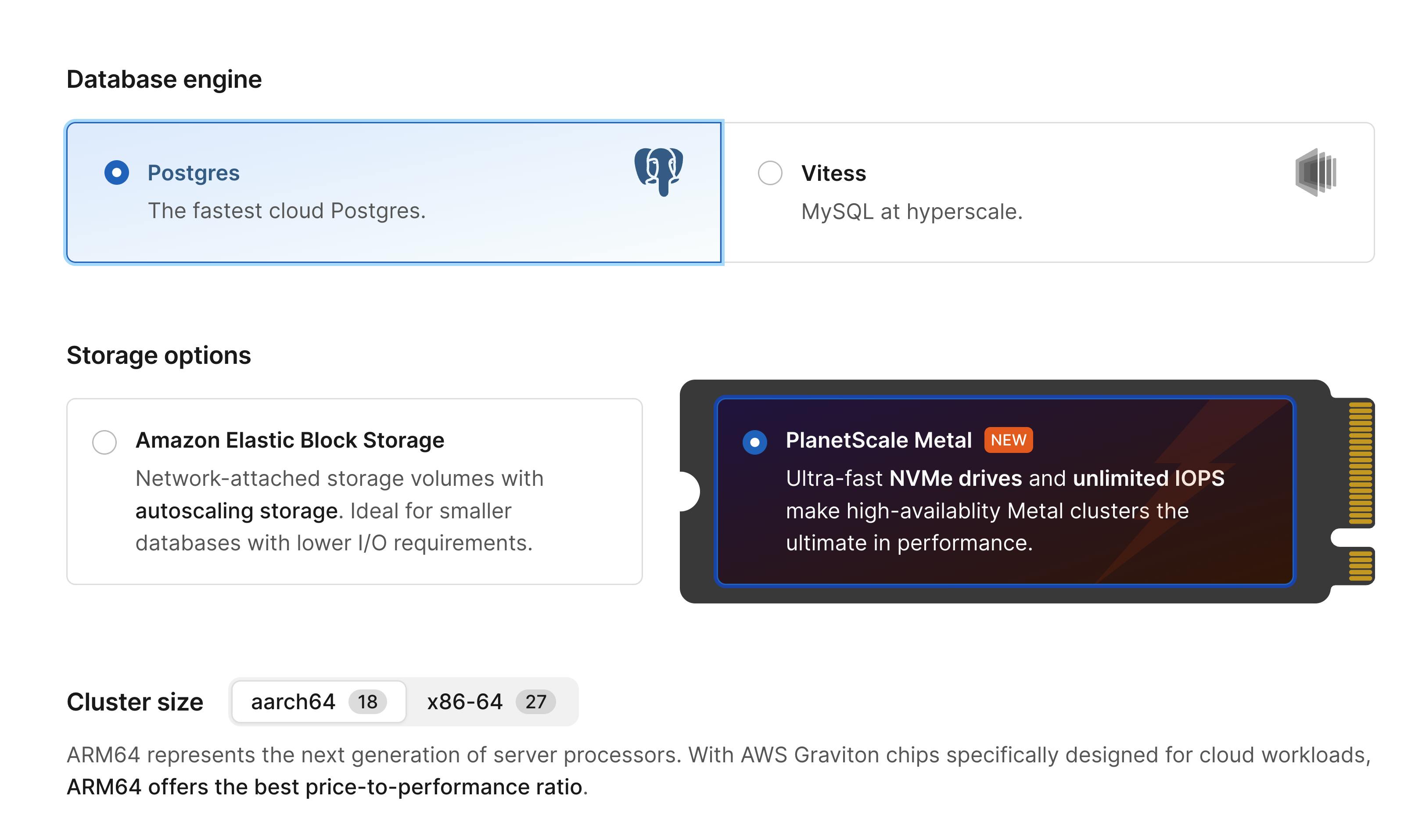

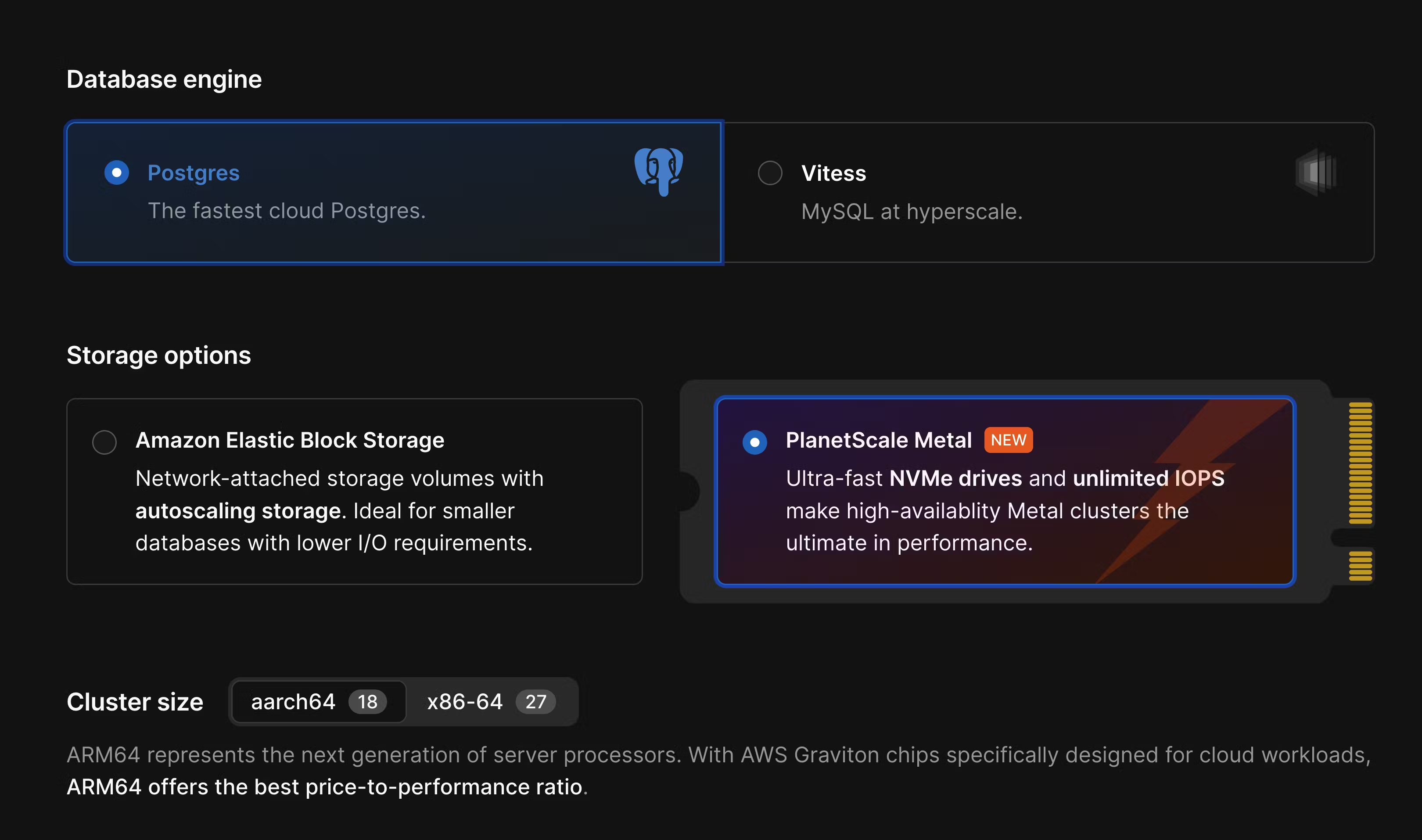

Creating a database

CPU architecture options

ARM64 (AWS Graviton):

  • Cost-optimized instances with good performance characteristics
  • Compatible with all PostgreSQL features and extensions
  • Lower power consumption and cost per compute unit

x86-64 (Intel/AMD):

  • Traditional architecture with broad compatibility
  • Optimized for single-threaded performance requirements
  • Full compatibility with existing tooling and applications

Learn more about CPU architecture selection.

Storage types

Storage choice significantly impacts database performance and cost. PlanetScale offers two distinct storage options optimized for different workload patterns:

PlanetScale Metal:

  • Direct-attached NVMe storage for maximum performance
  • Lower I/O latency compared to network-attached storage
  • Fixed storage capacity based on instance size
  • Optimal for I/O-intensive workloads

Network-attached storage (EBS):

  • Flexible storage scaling up to 16 TiB
  • Configurable IOPS and throughput settings
  • Automatic storage scaling based on usage patterns
  • Cost-effective for variable storage requirements

Learn more about storage configuration.

Performance and scaling relationships

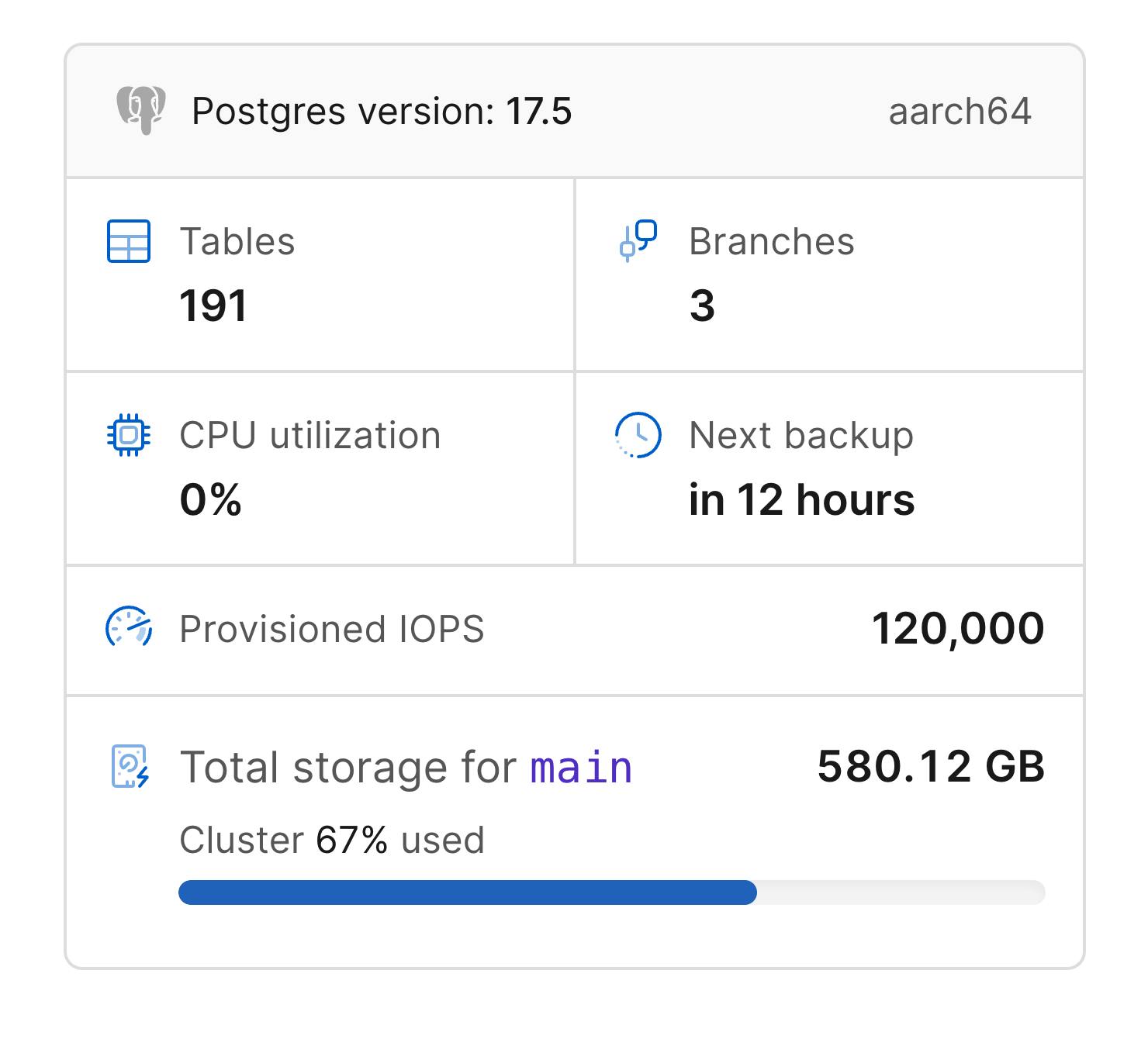

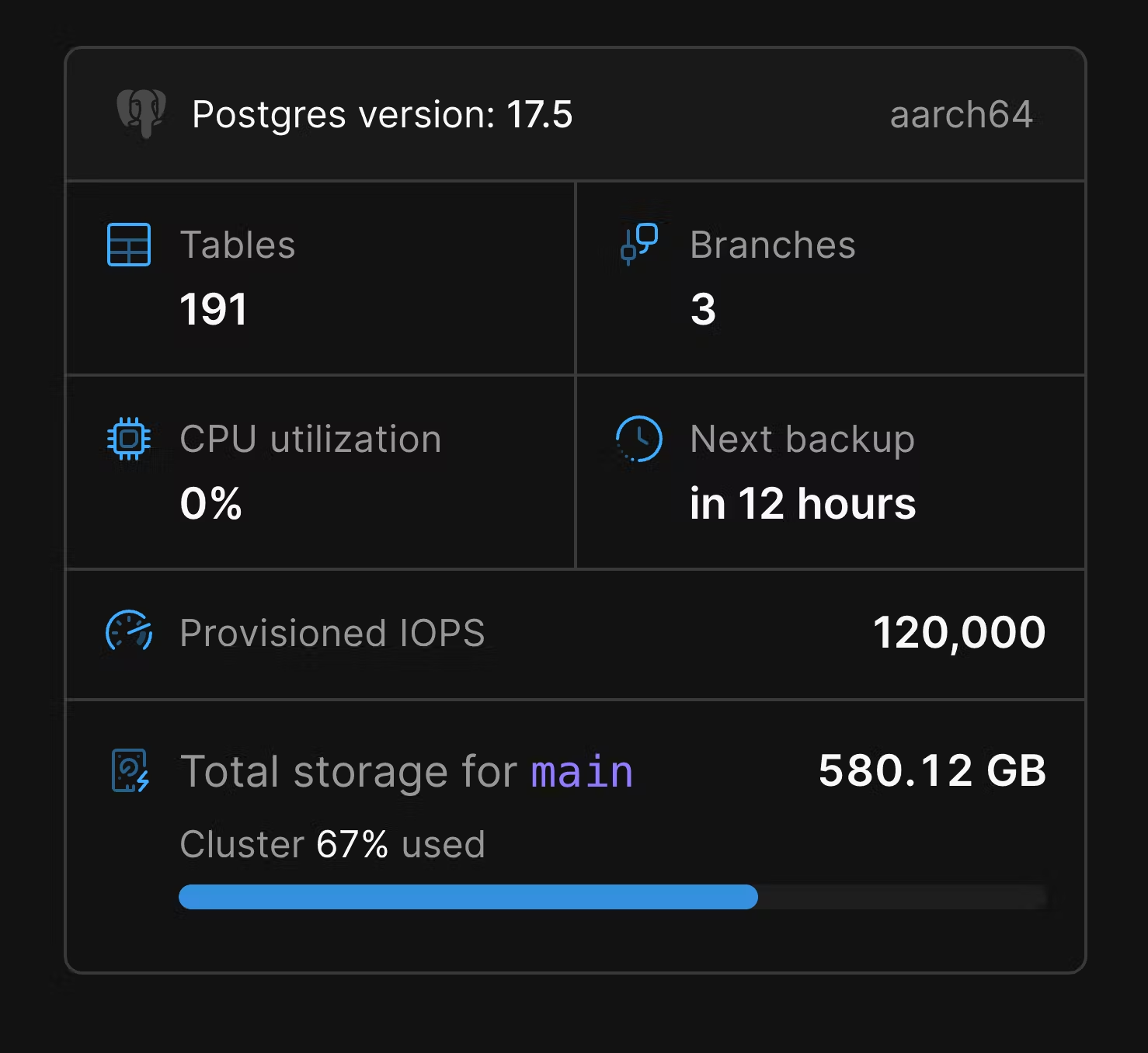

Database dashboard summary

Understanding how different configuration choices affect performance helps you optimize your database for both cost and performance. These relationships guide capacity planning and scaling decisions:

Compute scaling:

  • Instance size directly affects CPU, memory, and network capacity
  • Larger instances support more concurrent connections
  • Memory allocation affects query performance and caching efficiency

Storage performance:

  • Network-attached storage can autoscale to meet storage needs
  • Network-attached storage allows for configurable IOPS and disk bandwidth
  • PlanetScale Metal provides increased IOPS and ultra-low latency storage
  • Throughput limits vary by instance size and storage configuration

Operational capabilities

PlanetScale for Postgres provides comprehensive operational tools that give you visibility into database performance, health, and behavior. These capabilities help you monitor, troubleshoot, and optimize your database without requiring additional setup or external tools.

Insights and query analysis

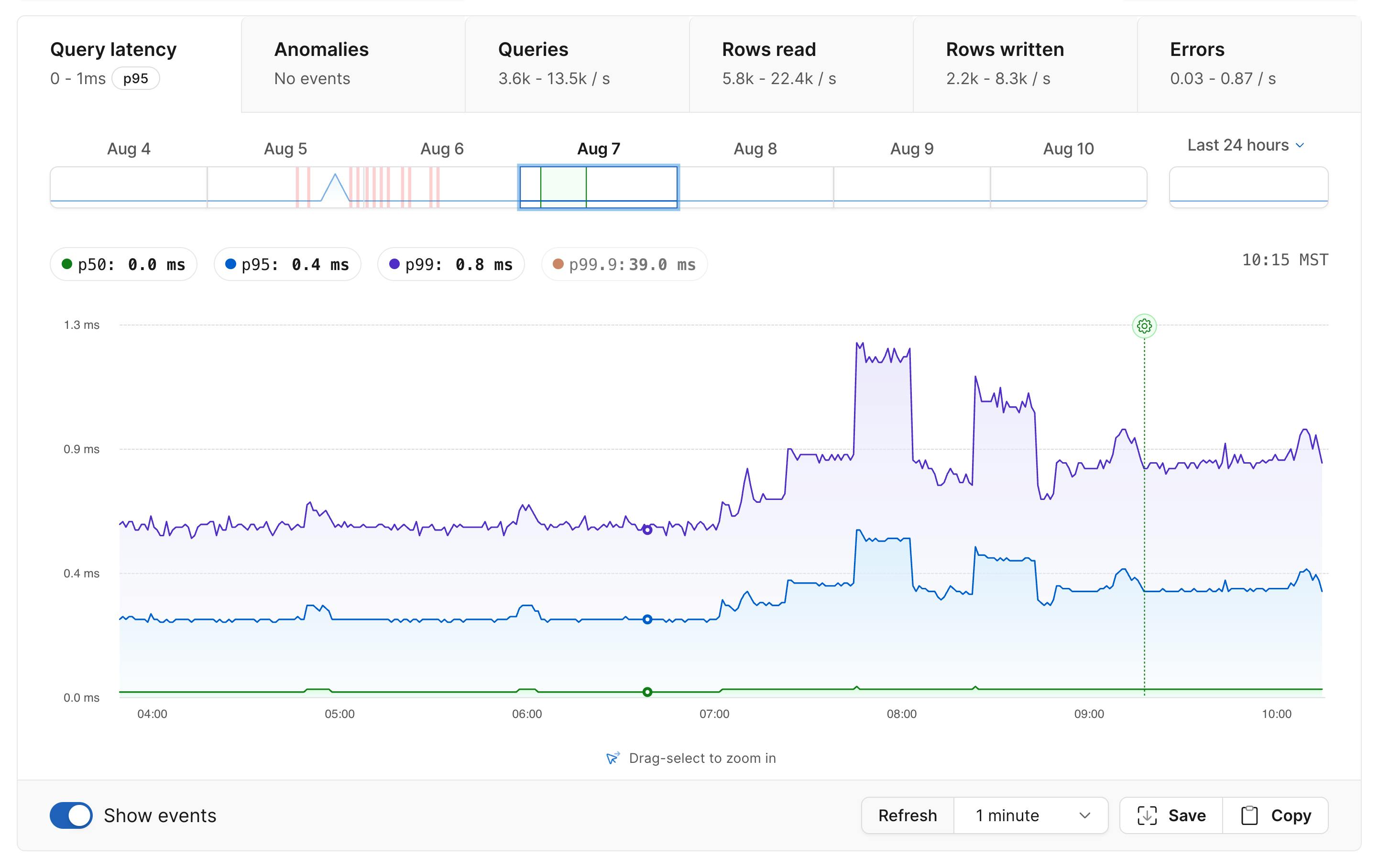

PlanetScale Insights

Query performance insights:

  • Automatic detection of slow-running queries and anomalies
  • Query execution plan analysis and recommendations
  • Historical query performance tracking
  • Identification of resource-intensive operations

Metrics and monitoring

Comprehensive metrics collection provides real-time visibility into database health and performance trends. All metrics are collected automatically and made available through both the dashboard and programmatic interfaces:

Built-in metrics collection:

  • CPU, memory, and storage utilization across all instances
  • Connection count and pooling efficiency
  • Replication lag and synchronization status

Learn more about monitoring and metrics.

Logs and diagnostics

Centralized logging aggregates all database-related logs in a searchable format with 7-day retention. This unified logging system helps with troubleshooting, security monitoring, and performance analysis:

Centralized logging:

  • PostgreSQL server logs from all instances
  • Query execution logs with configurable detail levels
  • Error logs with automatic categorization and alerting
  • Connection and authentication logs for security monitoring

Log analysis tools:

  • Search and filtering capabilities across all log sources
  • Export capabilities for external analysis tools

Cluster configuration options

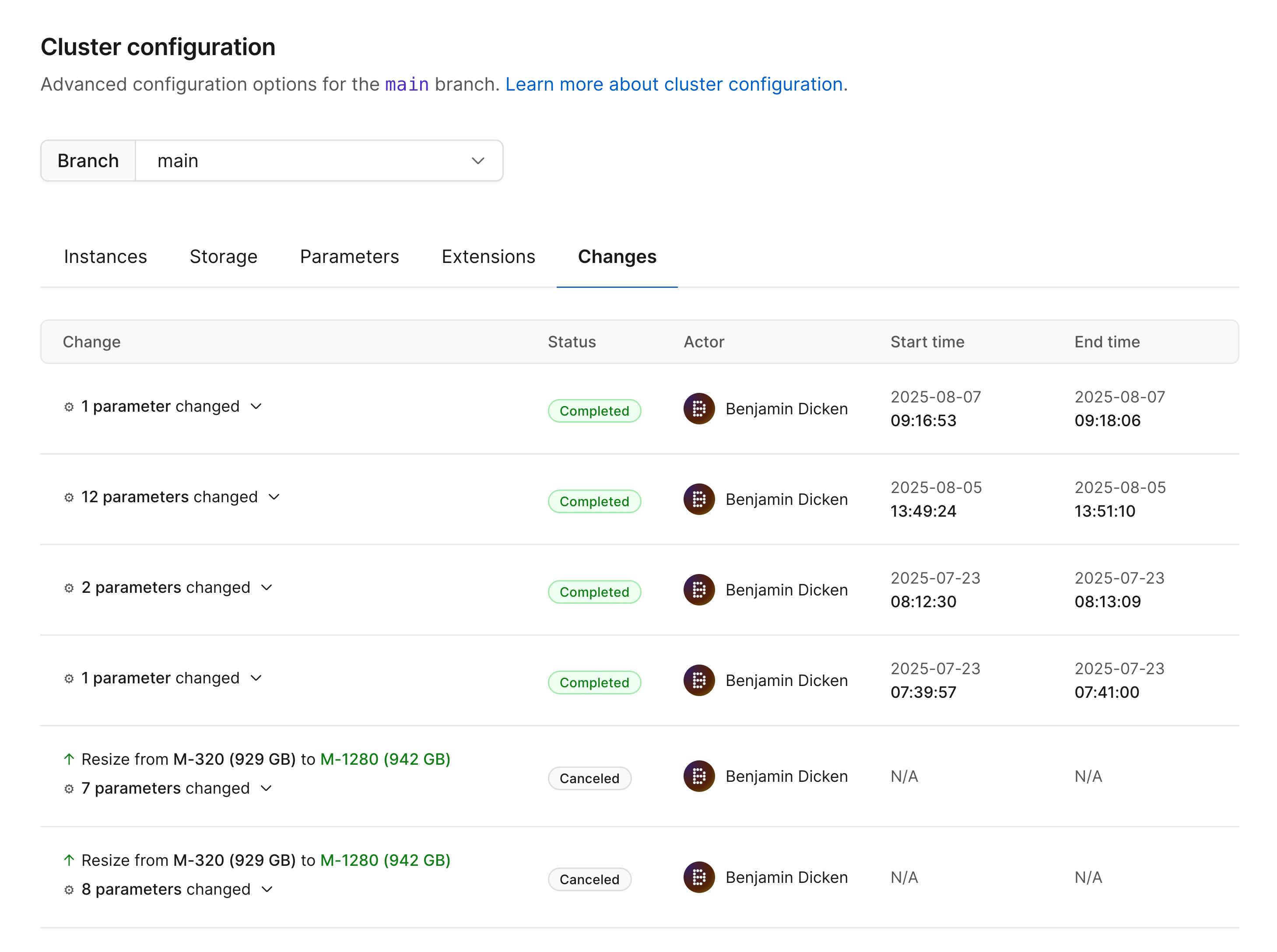

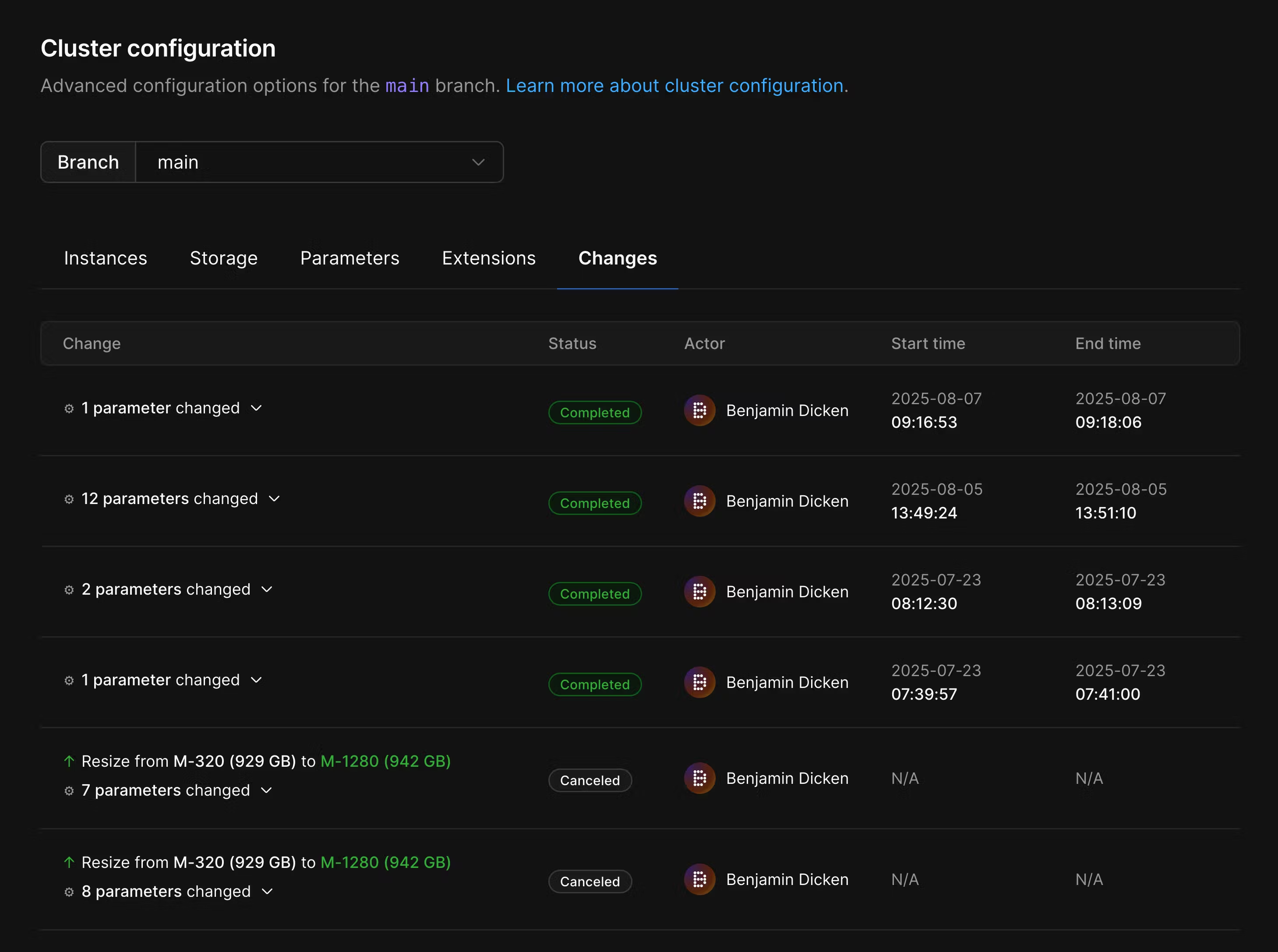

Tracking changes

Flexible configuration options allow you to customize PostgreSQL behavior, enable additional functionality, and optimize performance for your specific workload requirements:

Extension management:

  • Curated set of PostgreSQL extensions tested for compatibility
  • Both Native and Community extensions available
  • Managed through dashboard or CLI

Learn more about extension configuration.

Parameter tuning:

  • Pre-configured parameter sets optimized for different workload types
  • Customizable PostgreSQL configuration parameters
  • Automatic parameter adjustment based on instance size changes
  • Configuration change tracking

Learn more about parameter configuration.

Custom Backups and Point-in-time recovery:

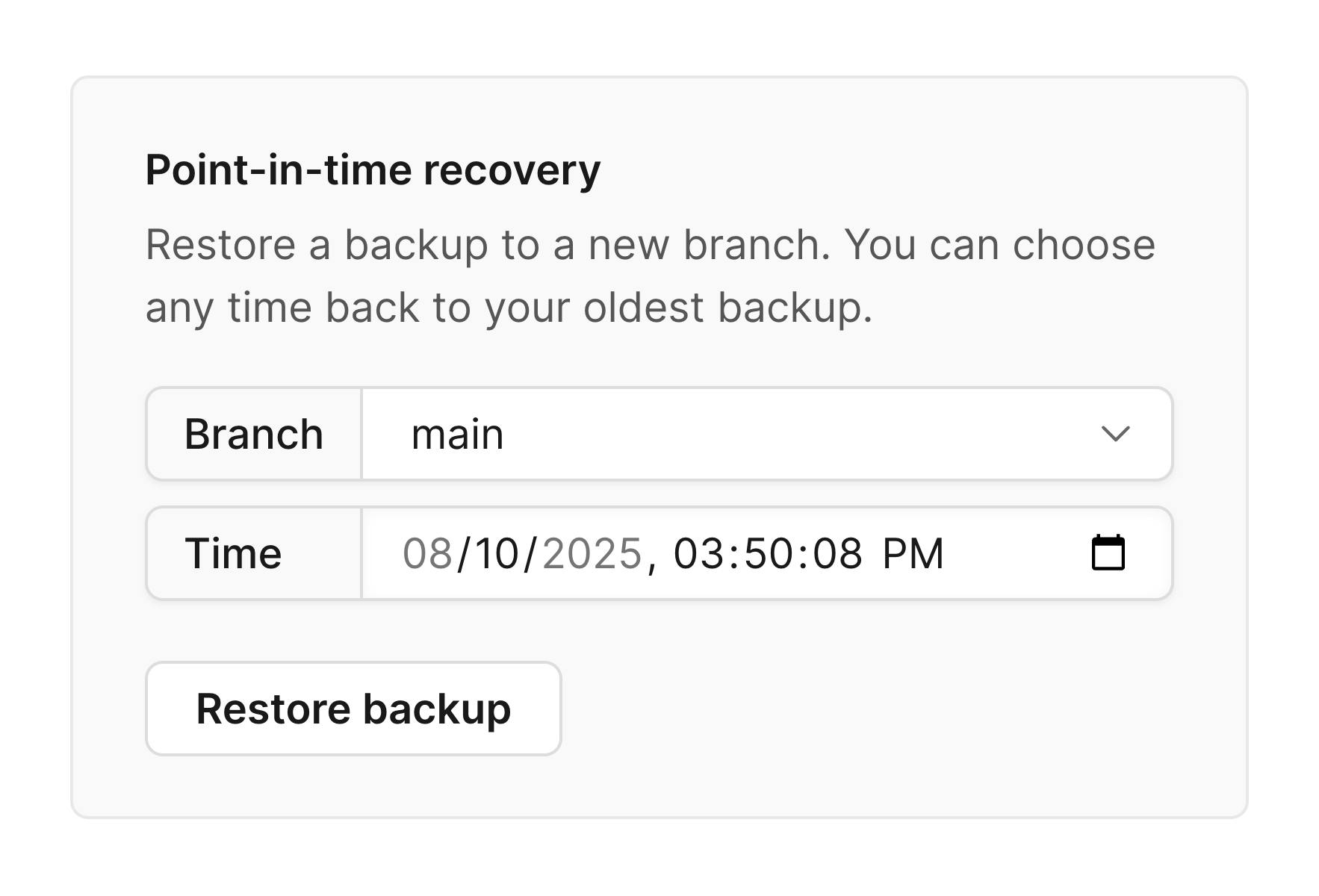

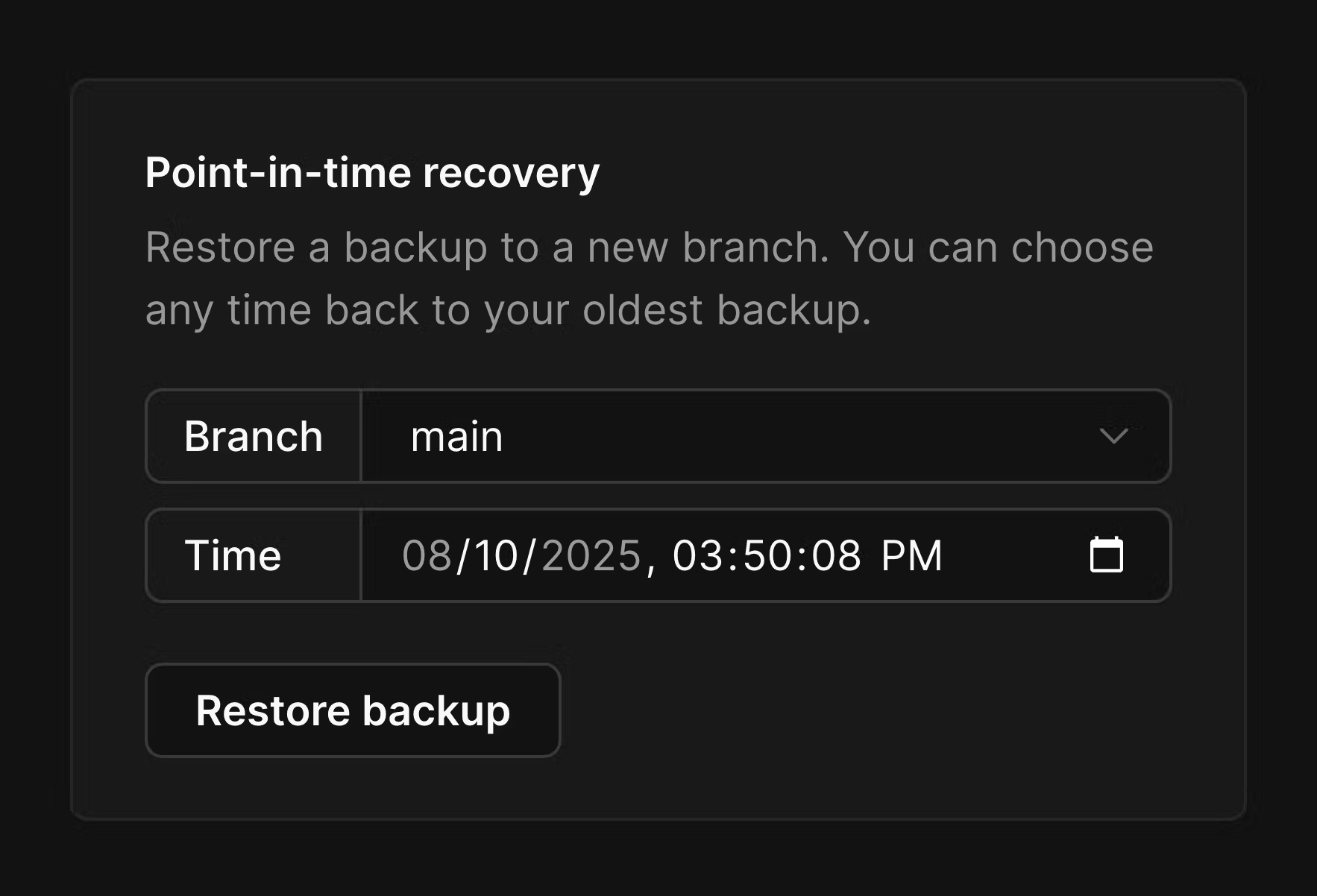

Postgres PITR

  • Automated backup scheduling with configurable retention periods
  • Custom backup timing to minimize impact on production workloads
  • Point-in-time recovery capabilities within retention windows

Learn more about backup and restore operations.

Development workflow integration

PlanetScale for Postgres integrates with development workflows through database branching and comprehensive migration support. These features enable safe schema changes and smooth transitions from other PostgreSQL platforms.

Database branching

Environment isolation:

  • Create isolated database environments from production backups
  • Independent schema and data changes without affecting production
  • Cost-optimized single-instance architecture for development branches
  • Automatic promotion to full high-availability architecture when needed

Third-party integrations

PlanetScale for Postgres integrates with popular monitoring and development tools through standard protocols and APIs. These integrations allow you to incorporate database metrics into existing workflows and toolchains:

Monitoring system integrations:

Development tool integrations:

  • Standard PostgreSQL connection protocols for universal tool compatibility
  • Support for popular database administration tools
  • API access for programmatic management and monitoring
