Migrate from Supabase to PlanetScale

Postgres

Use this guide to migrate an existing Supabase database to PlanetScale for Postgres.

This guide will cover a no-downtime approach to migrating using Postgres logical replication. If you are willing to tolerate downtime during a maintenance window, you may also use pg_dump and restore. The pg_dump/restore approach is simpler, but is only for applications where downtime is acceptable.

These instructions work for all versions of Postgres that support logical replication (version 10+) If you have an older version you want to bring to PlanetScale, contact us for guidance.

Before beginning a migration, you should check our extensions documentation to ensure that all of the extensions you rely on will work on PlanetScale.

As an alternative to this guide, you can also try our Postgres migration scripts. These allow you to automate some of the manual steps that we describe in this guide.

1. Prepare your PlanetScale database

Go to app.planetscale.com and create a new database. A few things to check when configuring your database:

  • Ensure you select the correct cloud region. You typically want to use the same region that you deploy your other application infrastructure to.
  • Since Supabase uses Postgres, you'll also want to create a Postgres database in PlanetScale.

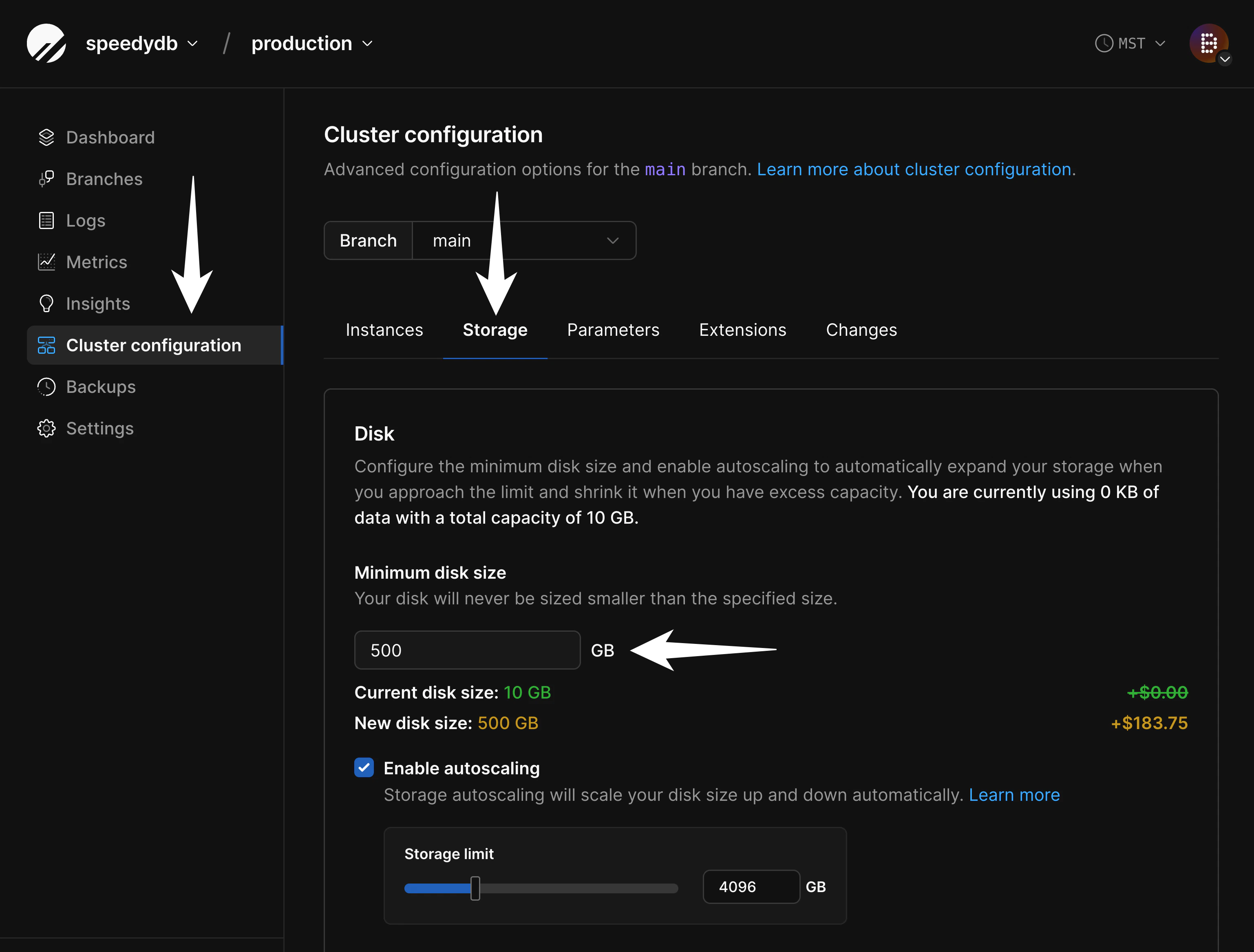

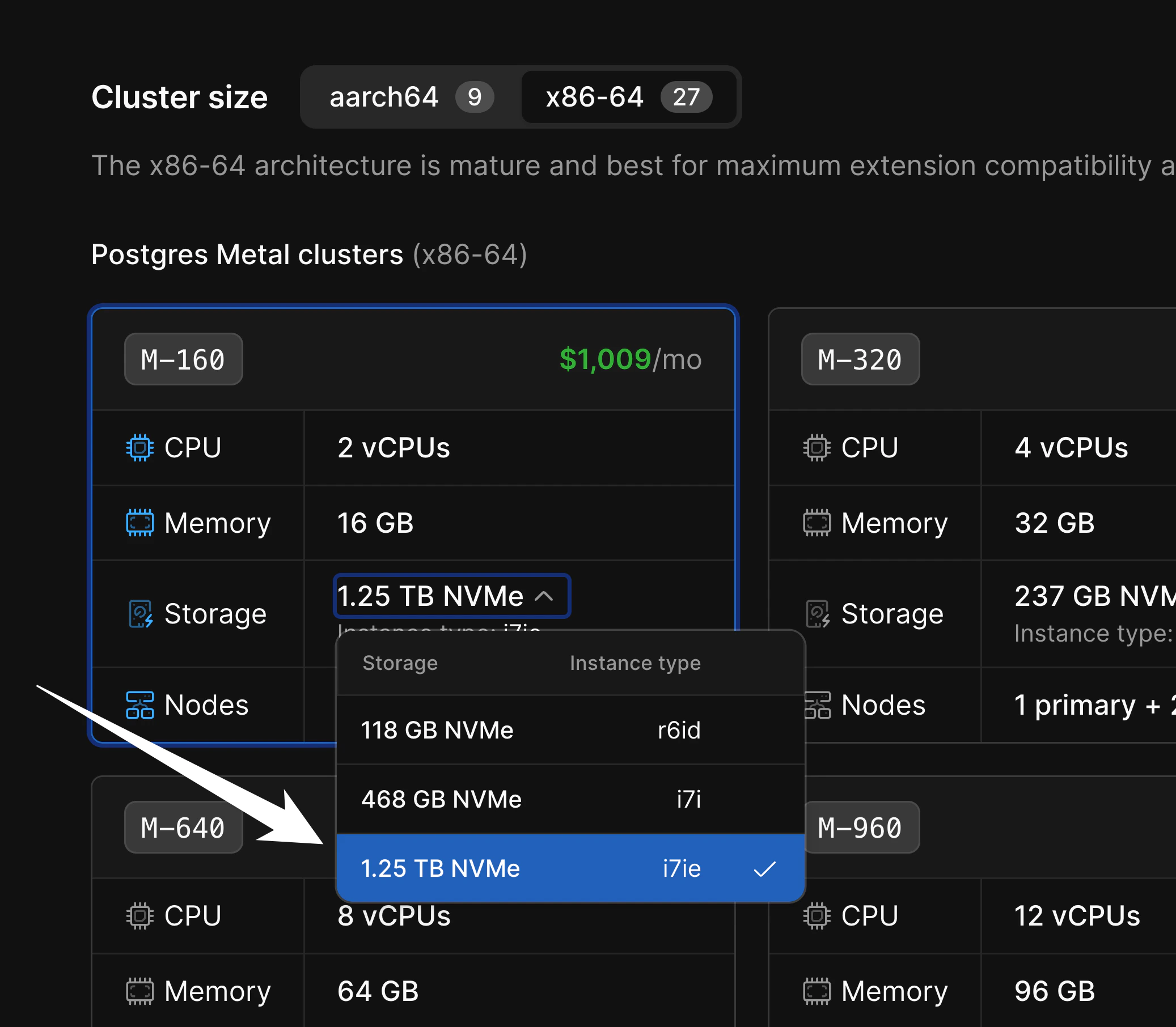

  • Choose the best storage option for your needs. For applications needing high-performance and low-latency I/O, use PlanetScale Metal. For applications that need more flexible storage options or smaller compute instances, choose "Elastic Block Storage" or "Persistent Disk."
  • Choose between aarch64 and x86-64 architecture. If you don't know which to choose, aarch64 is a good default choice.

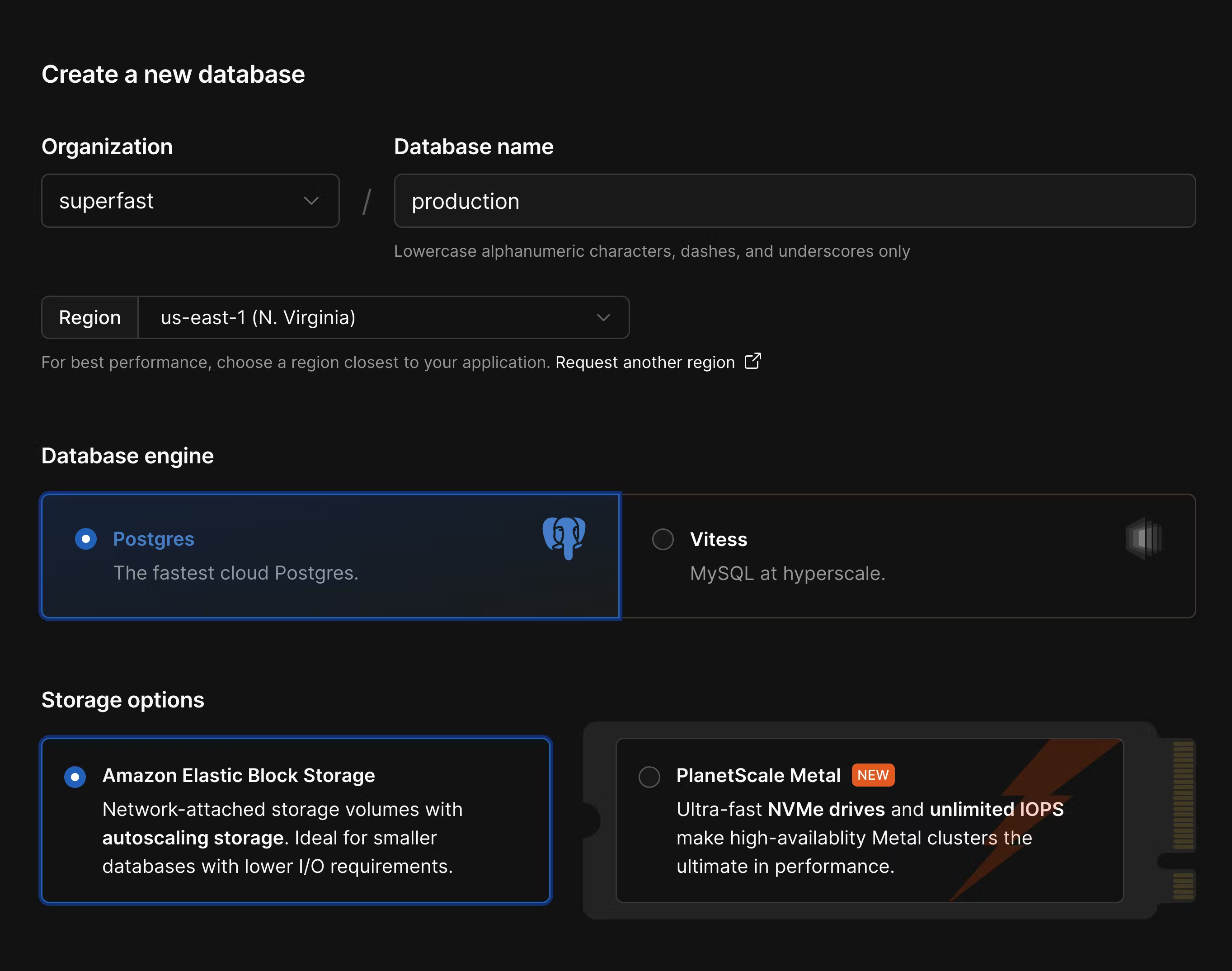

Create a new PlanetScale for Postgres database

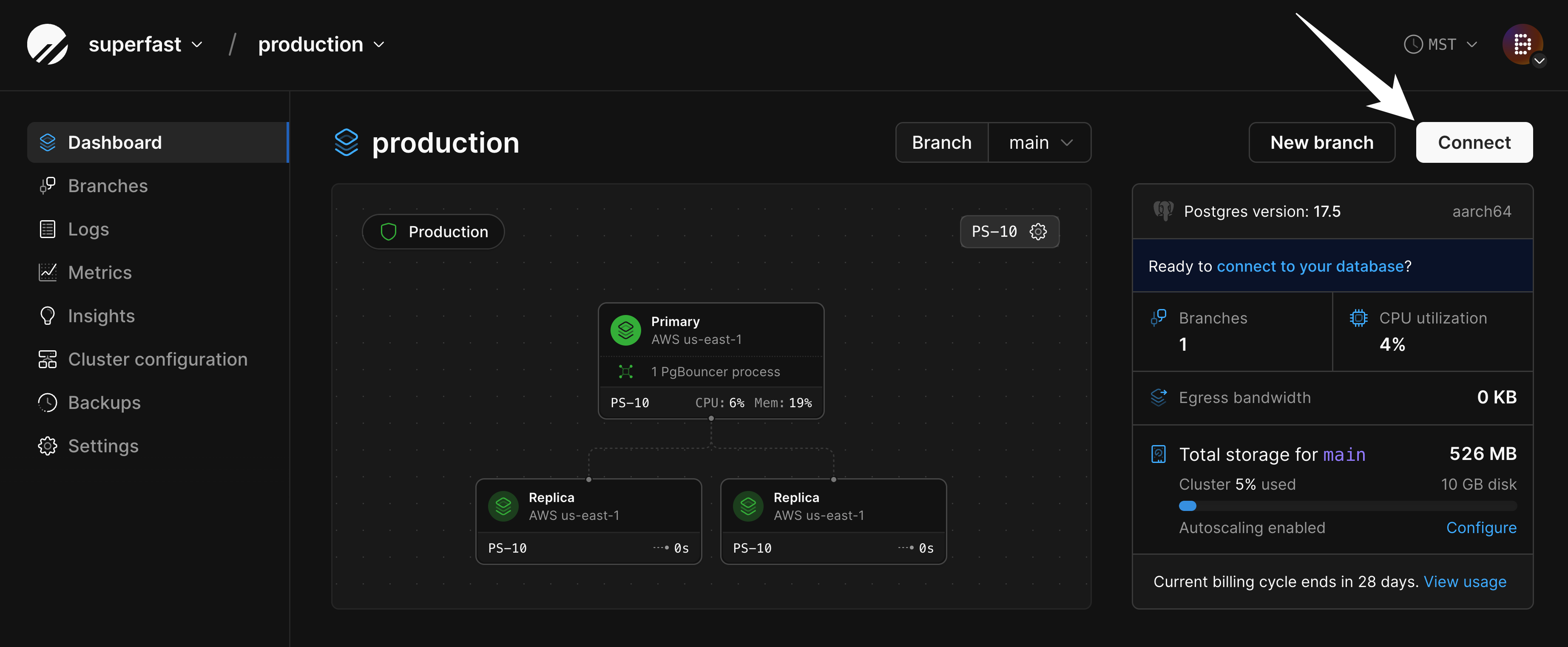

Once the database is created and ready, navigate to your dashboard and click the "Connect" button.

Connect to a PlanetScale for Postgres database

From here, follow the instructions to create a new default role. This role will act as your admin role, with the highest level of privileges.

Though you may use this one for your migration, we recommend you use a separate role with lesser privileges for your migration and general database connections.

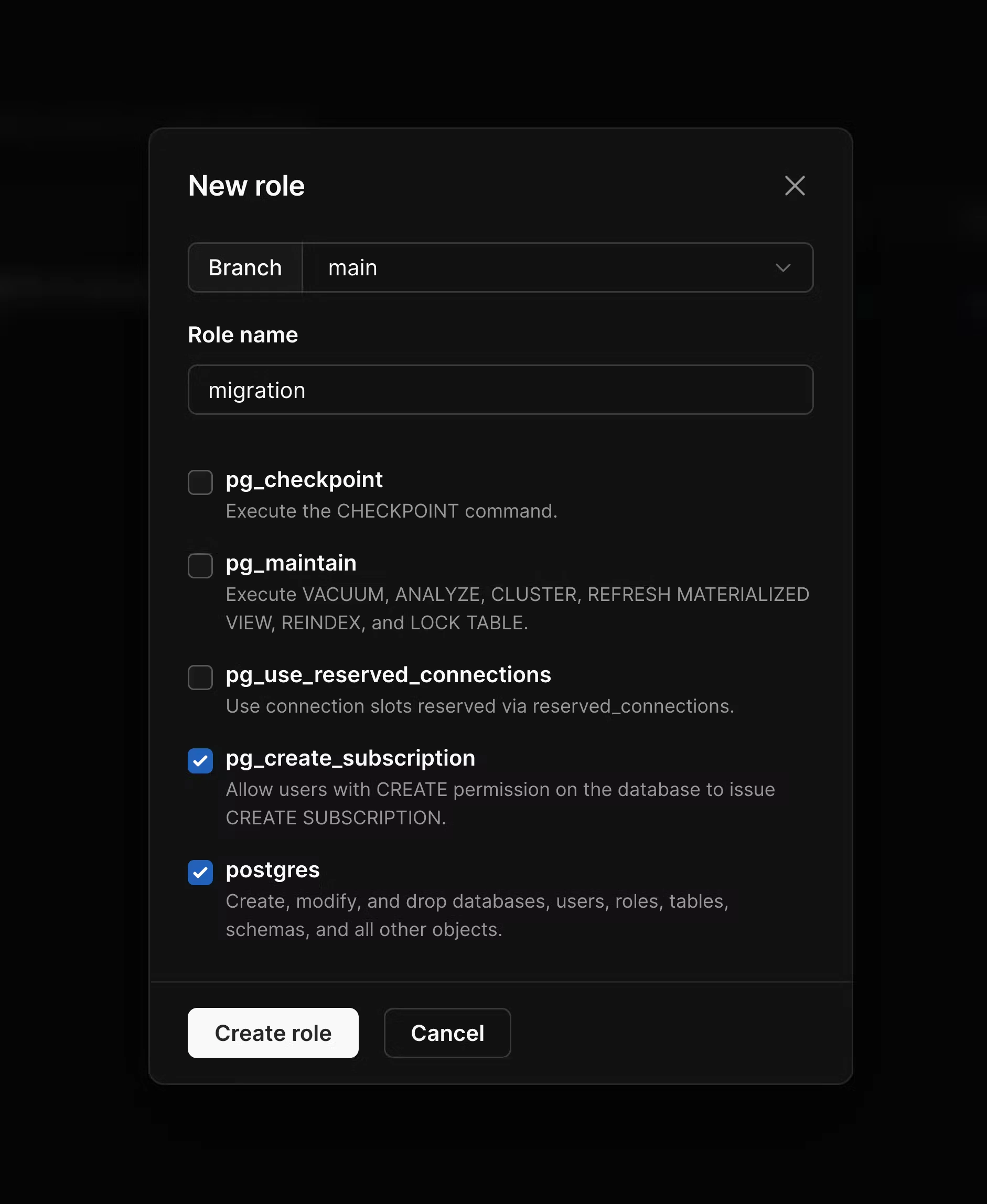

To create a new role, navigate to the Role management page in your database settings. Click "New role" and give the role a memorable name. By default, pg_read_all_data and pg_write_all_data are enabled. In addition to these, enable pg_create_subscription and postgres, and then create the role.

New Postgres role privileges

Copy the password and all other connection credentials into environment variables for later use:

PLANETSCALE_USERNAME=pscale_api_XXXXXXXXXX.XXXXXXXXXX
PLANETSCALE_PASSWORD=pscale_pw_XXXXXXXXXXXXXXXXXXXXXXX
PLANETSCALE_HOST=XXXX.pg.psdb.cloud
PLANETSCALE_DBNAME=postgres

We also recommend that you increase max_worker_processes for the duration of the migration in order to speed up data copying. Go to the "Parameters" tab of the "Cluster configuration" page:

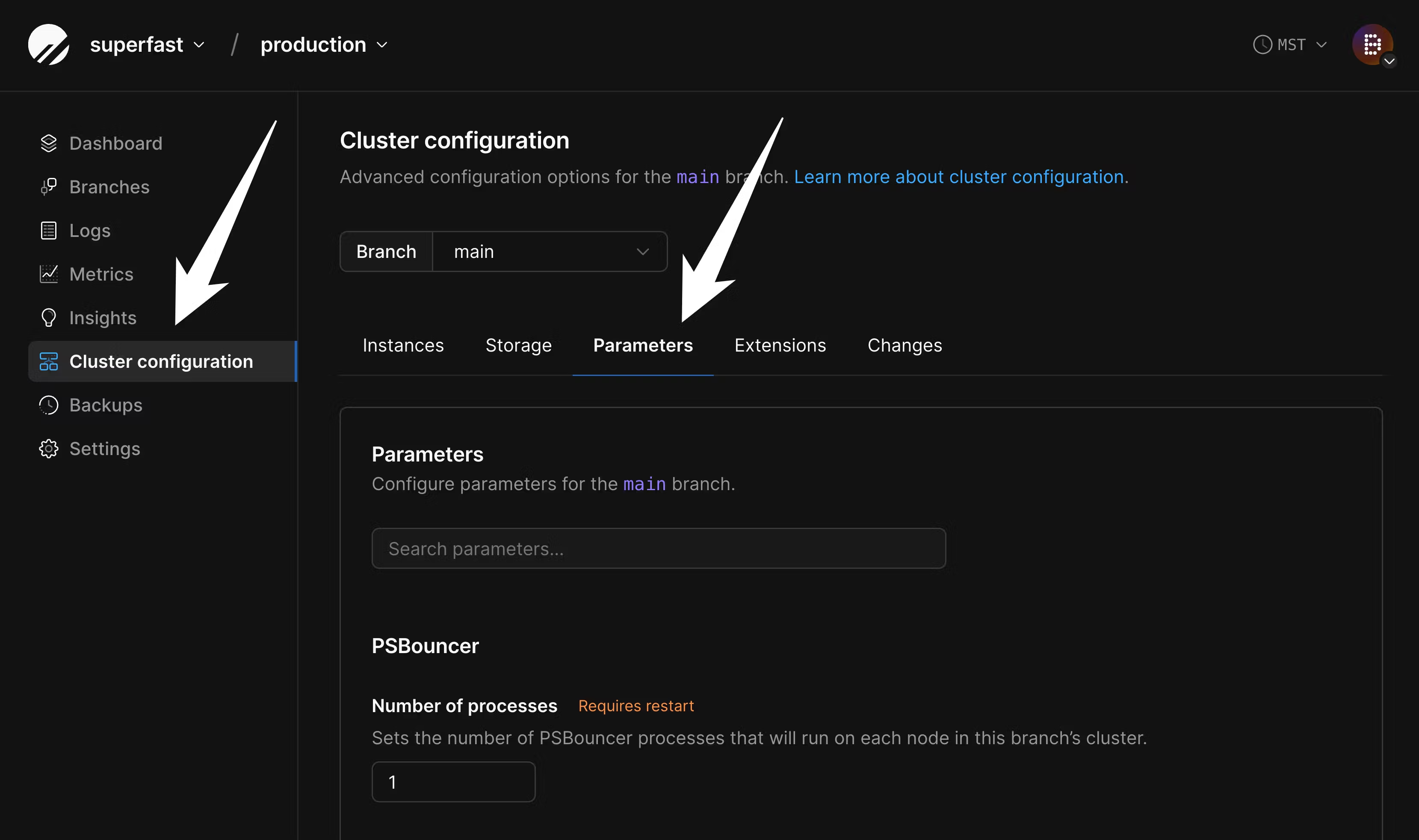

Configure parameters

On this page, increase this value from the default of 4 to 10 or more:

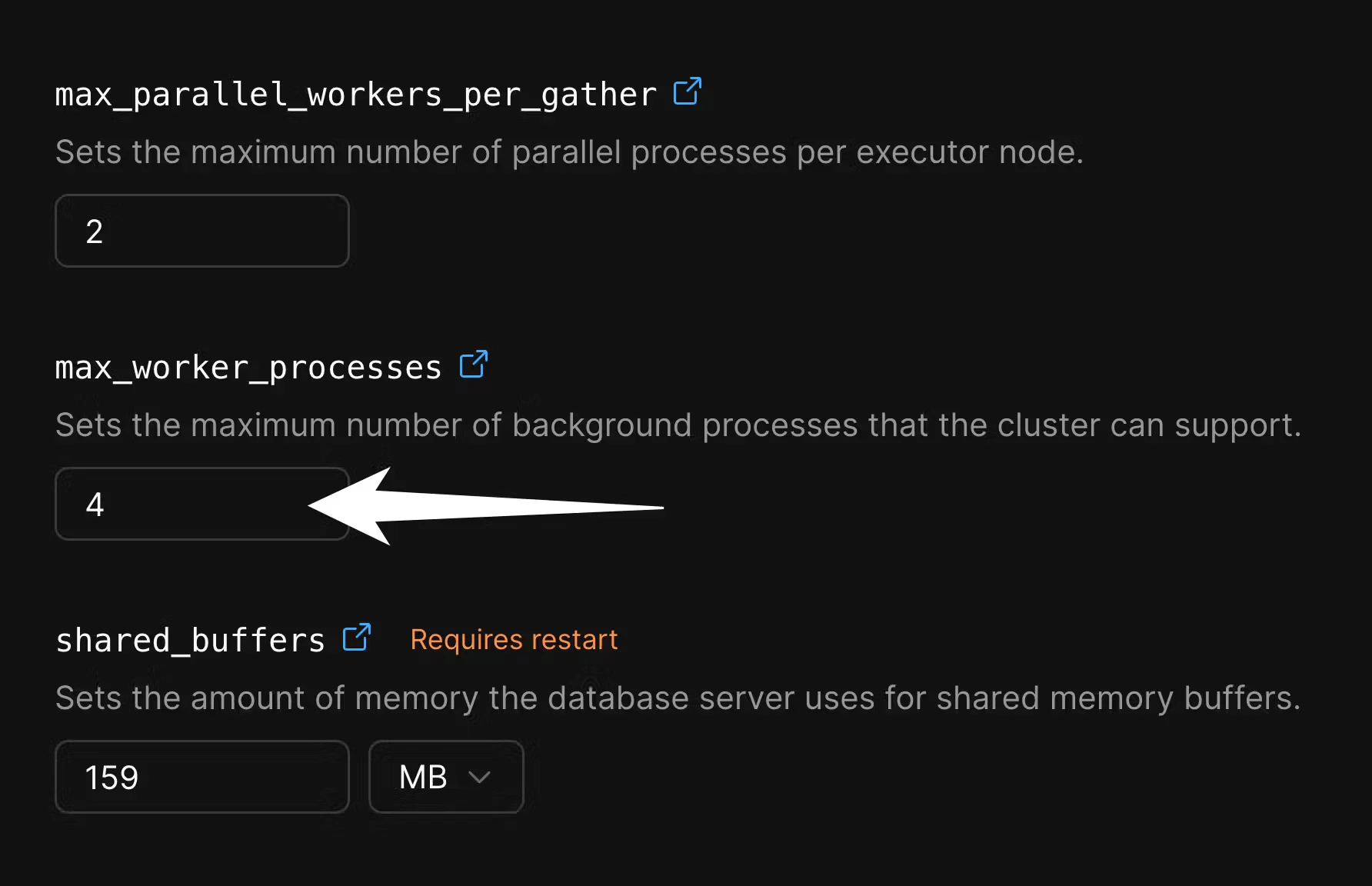

Configure max worker processes

You can decrease these values after the migration is complete.

2. Enable IPv4 direct connections in Supabase

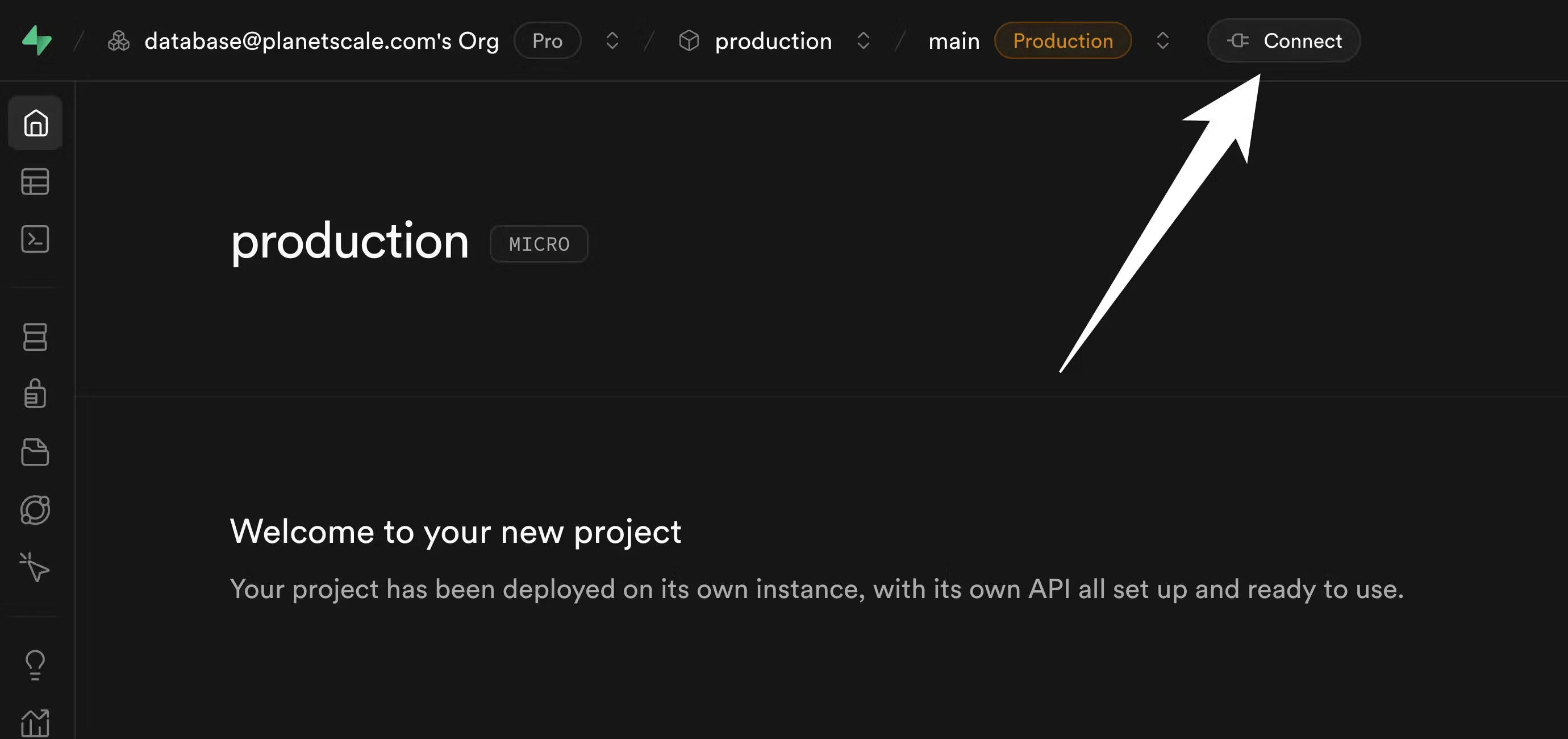

In Supabase, logical replication to external sources requires direct connections. Direct IPv4 connections are not enabled by default. If you have not enabled them yet, go to your project dashboard in Supabase and click the "Connect" button:

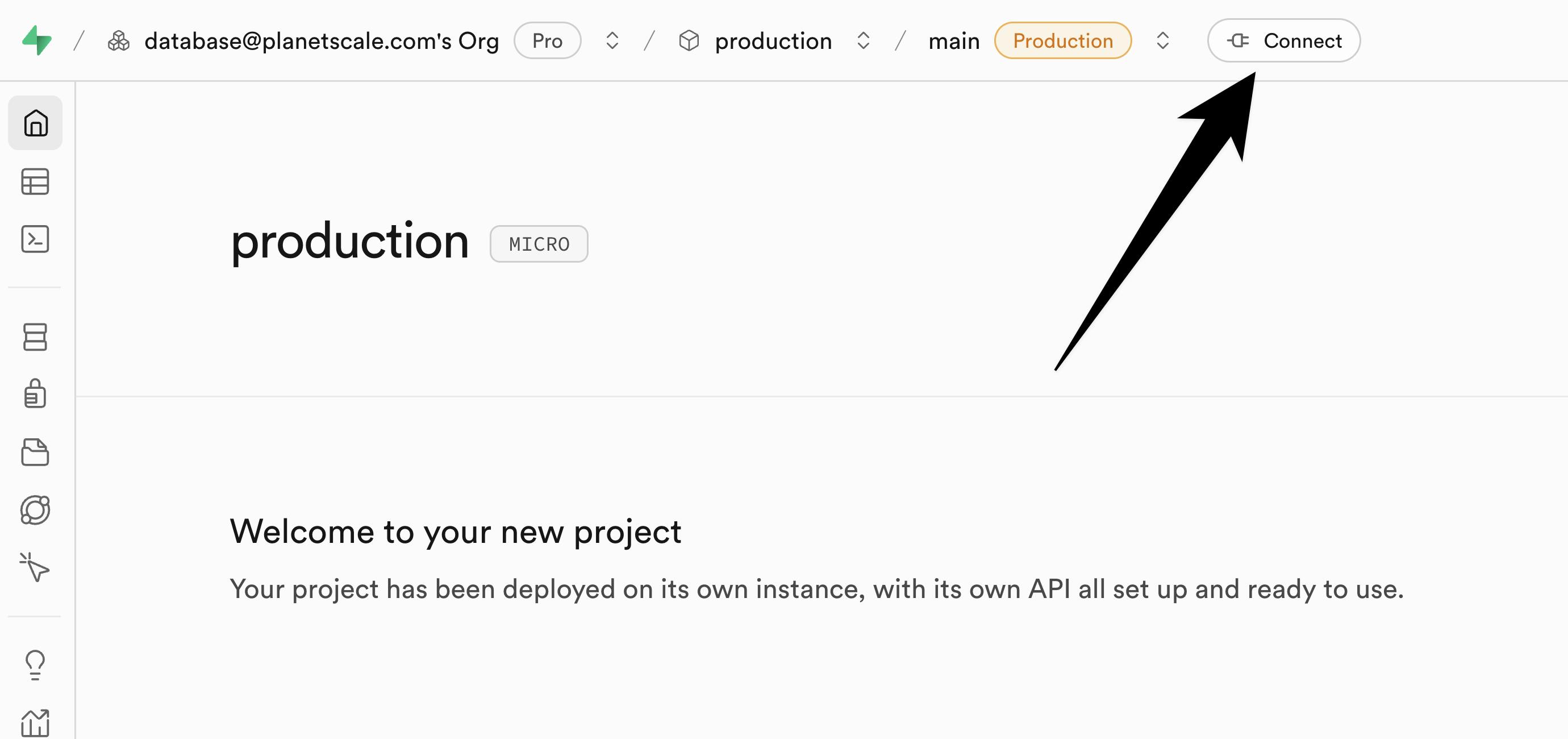

Supabase dashboard

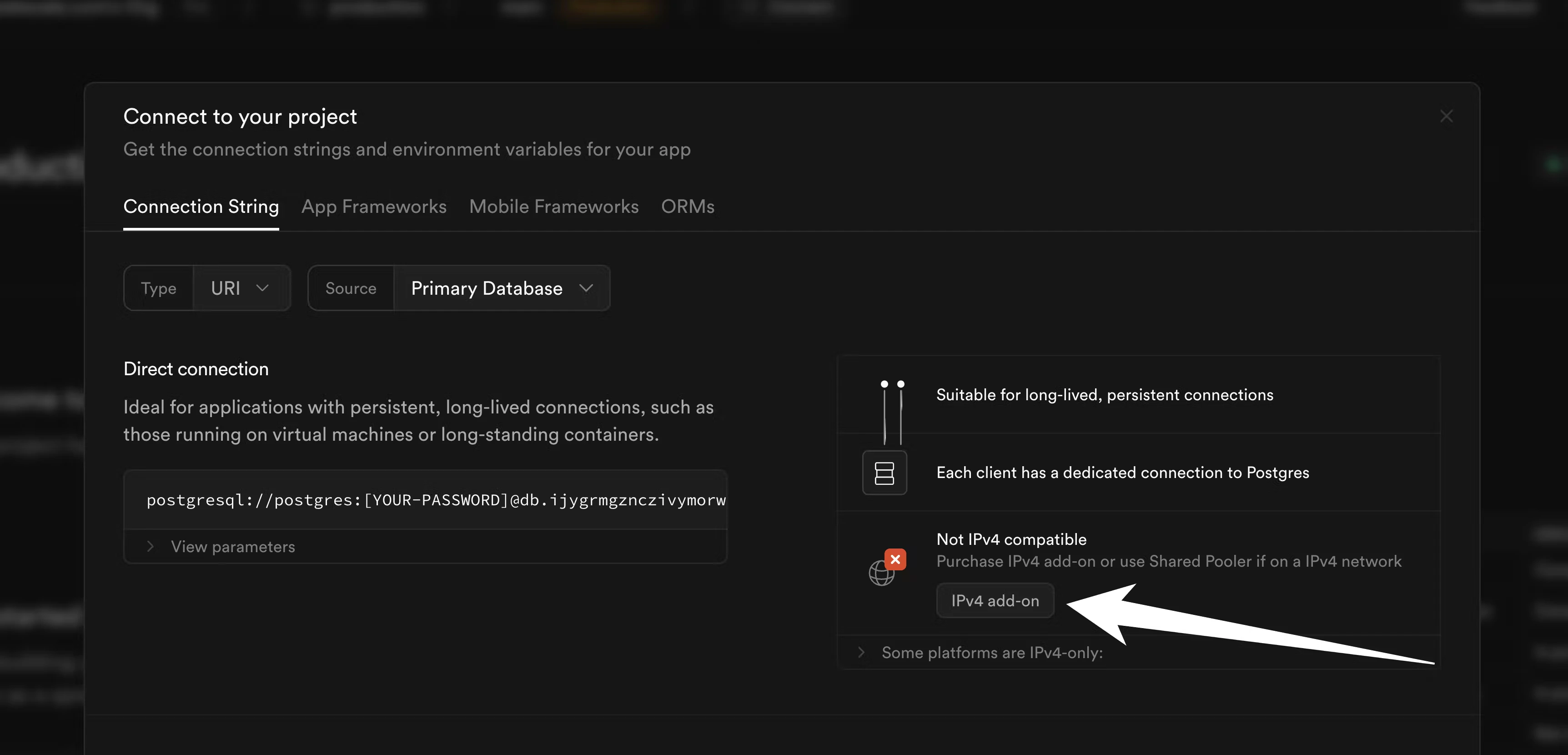

In the connection modal, click "IPv4 add-on."

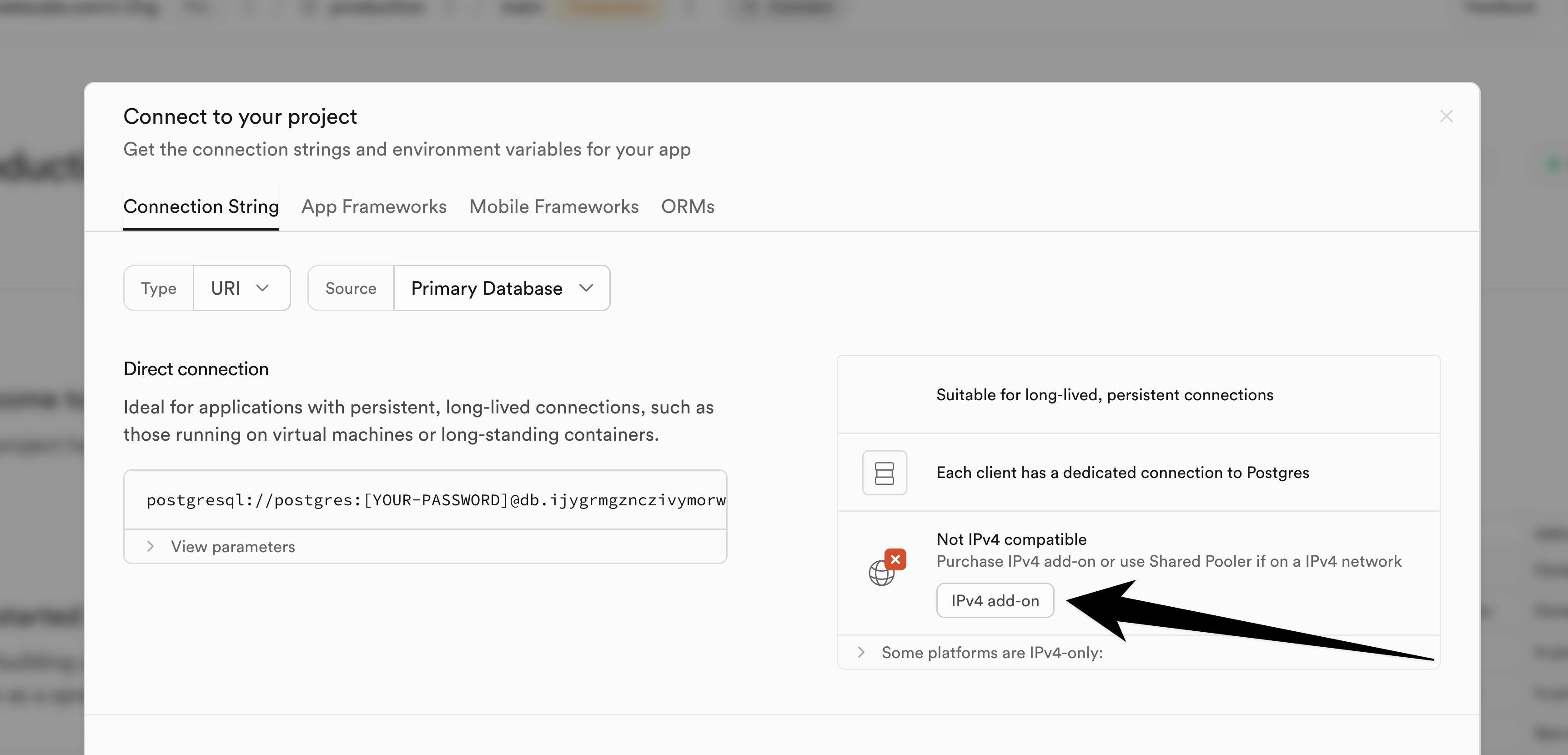

Supabase direct

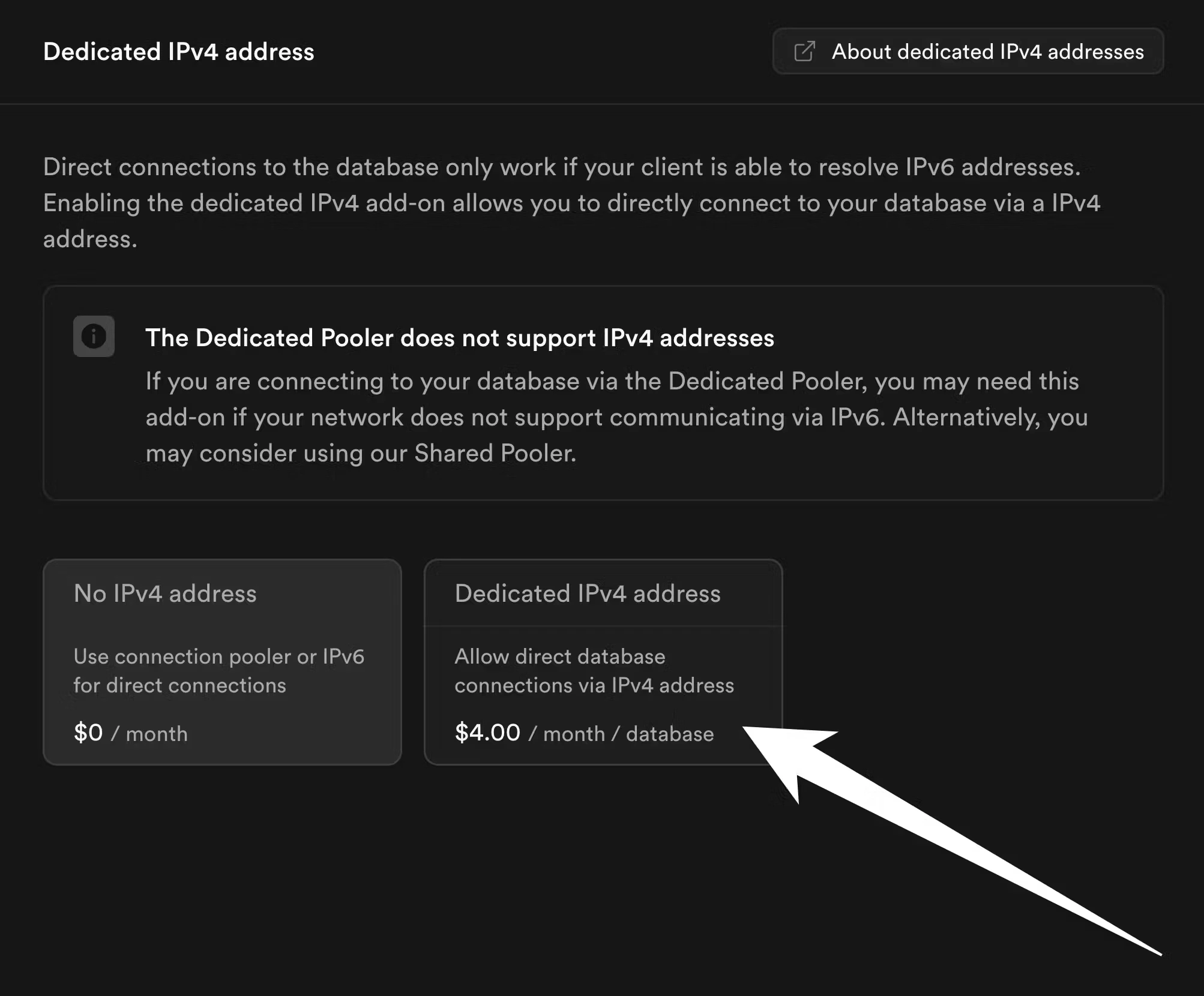

In the menu that appears, enable the IPv4 add-on:

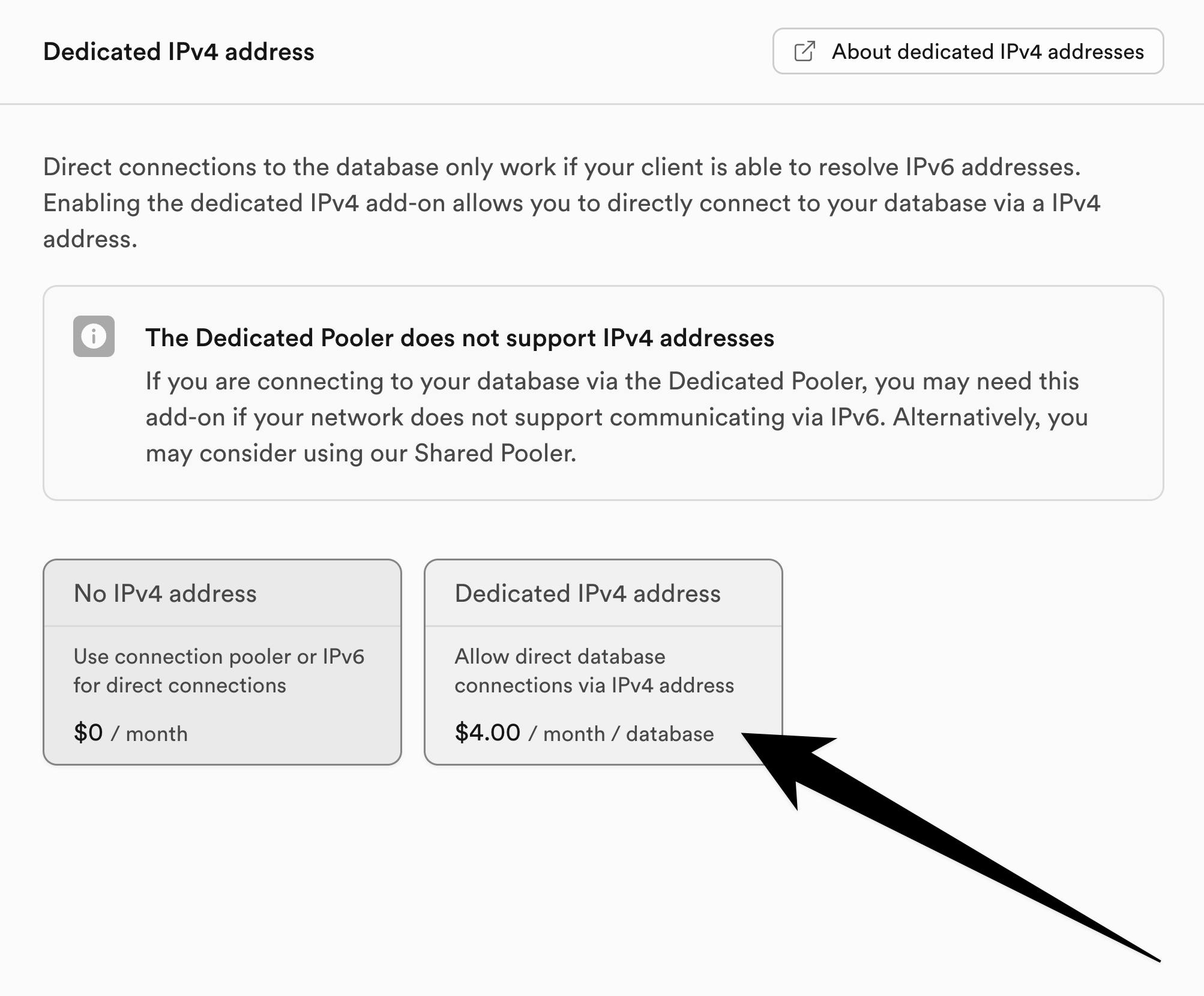

Supabase IPV4

Supabase notes that enabling this might incur downtime. Take that into account when planning your migration.

3. Copy schema from Supabase to PlanetScale

Before we begin migrating data, we first must copy the schema from Supabase to PlanetScale. We do this as a distinct set of steps using pg_dump.

Warning

You should not make any schema changes during the migration process. You may continue to select, insert, update, and delete data, keeping your application fully online during this process.

For these instructions, you'll need to connect to your Supabase role that has permissions to create replication publications and read all data. You also must use a direct IPv4 connection. Your default role that was generated by Supabase when you first created your database should suffice here. We will assume that the credentials for this user and other connection info are stored in the following environment variables.

SUPABASE_USERNAME=XXXX
SUPABASE_PASSWORD=XXXX
SUPABASE_HOST=XXX
SUPABASE_DBNAME=XXX

Run the below command to take a snapshot of the full schema of the $SUPABASE_DBNAME that you want to migrate:

PGPASSWORD=$SUPABASE_PASSWORD \
pg_dump -h $SUPABASE_HOST \
        -p 5432 \
        -U $SUPABASE_USERNAME \
        -d $SUPABASE_DBNAME \
        --schema-only \
        --no-owner \
        --no-privileges \
        --schema=public \
        -f schema.sql

This saves the schema into a file named schema.sql.

Note

The above command will dump the tables only for the public schema. If you want to include other schemas in the migration, you can repeat these steps for each, or customize the commands to dump multiple schemas at once.

The schema then needs to be loaded into your new PlanetScale database:

PGPASSWORD=$PLANETSCALE_PASSWORD \
psql -h $PLANETSCALE_HOST \
     -p 5432 \
     -U $PLANETSCALE_USERNAME \
     -d $PLANETSCALE_DBNAME \
     -f schema.sql

In the output of this command, you might see some error messages of the form:

psql:schema.sql:LINE: ERROR: DESCRIPTION

You should inspect these to see if they are of any concern. You can reach out to our support if you need assistance at this step.

4. Set up logical replication

We now must create a PUBLICATION on Supabase that the PlanetScale database can subscribe to for data copying and replication. This example shows how to create a publication that only publishes changes to tables in the public schema of your Postgres database. You can adjust the commands if you want to do so for a different schema, or have multiple schemas to migrate.

First, run this command on your Supabase database to get all of the tables in the public schema:

SELECT 'CREATE PUBLICATION replicate_to_planetscale FOR TABLE ' ||
       string_agg(format('%I.%I', schemaname, tablename), ', ') || ';'
FROM pg_tables
WHERE schemaname = 'public';

This will generate a query that looks like this:

CREATE PUBLICATION replicate_to_planetscale FOR TABLE
  public.table_1,
  public.table_2,
  ...
  public.table_n;

Take this command and execute it on your Supabase database. You should see this if it created correctly:

CREATE PUBLICATION

We then need to tell PlanetScale to SUBSCRIBE to this publication.

PGPASSWORD=$PLANETSCALE_PASSWORD psql \
  -h $PLANETSCALE_HOST \
  -U $PLANETSCALE_USERNAME \
  -p 5432 $PLANETSCALE_DBNAME \
  -c "
CREATE SUBSCRIPTION replicate_from_supabase
CONNECTION 'host=$SUPABASE_HOST dbname=$SUPABASE_DBNAME user=$SUPABASE_USERNAME password=$SUPABASE_PASSWORD'
PUBLICATION replicate_to_planetscale WITH (copy_data = true);"

Data copying and replication will begin at this point. To check in on the row counts on the tables, you can run a query like this on your source and target databases:

SELECT table_name, row_count FROM (
  SELECT 'table_name_1' as table_name, COUNT(*) as row_count FROM table_name_1 UNION ALL
  SELECT 'table_name_2', COUNT(*) FROM table_name_2 UNION ALL
  ...
  SELECT 'table_name_N', COUNT(*) FROM table_name_N
) t ORDER BY table_name;

When the row counts match (or nearly match) you can begin testing and preparing for your application to cutover to use PlanetScale.

5. Handling sequences

Logical replication is great at migrating all of your data over to PlanetScale. However, logical replication does not synchronize the nextval values for sequences in your database. Sequences are often used for things like auto incrementing IDs, so it's important to ensure we update this before you switch your traffic to PlanetScale.

You can see all of the sequences and their corresponding nextvals on your source Supabase database using this command:

SELECT schemaname, sequencename, last_value + increment_by AS next_value
FROM pg_sequences;

An example output from this command:

 schemaname |   sequencename   | next_value
------------+------------------+------------
 public     | users_id_seq     |        105
 public     | posts_id_seq     |       1417
 public     | followers_id_seq |       3014

What this means is that we have three sequences in our database. In this case, they are all being used for auto-incrementing primary keys. The nextval for the users_id_seq is 105, the nextval for the posts_id_seq is 1417, and the nextval for the followers_id_seq is 3014. If you run the same query on your new PlanetScale database, you'll see something like:

 schemaname |   sequencename   | next_value
------------+------------------+------------
 public     | users_id_seq     |          0
 public     | posts_id_seq     |          0
 public     | followers_id_seq |          0

If you switch traffic over to PlanetScale in this state, you'll likely encounter errors when inserting new rows:

ERROR:  duplicate key value violates unique constraint "XXXX"
DETAIL:  Key (id)=(ZZZZ) already exists.

Before switching over, you need to progress all of these sequences forward so that the nextvals produced will be greater than any of the values previously produced on the source Supabase database, avoiding constraint violations. There are several approaches you can take for this. A simple way to solve the problem is to first run this query on your source Supabase database:

SELECT 'SELECT setval(''' || schemaname || '.' || sequencename || ''', '
       || (last_value + 10000) || ');' AS query
FROM pg_sequences;

This will generate a sequence of queries that will advance the nextval by 10,000 for each sequence:

                      query
--------------------------------------------------
 SELECT setval('public.users_id_seq', 10104);
 SELECT setval('public.posts_id_seq', 11416);
 SELECT setval('public.followers_id_seq', 13013);

You would then execute these on your target PlanetScale database. You need to ensure you advance each sequence far enough forward so that the sequences in the Supabase database will not reach these nextvals before you switch your primary to PlanetScale. For tables that have a high insertion rate, you might need to increase this by a larger value (say, 100,000 or 1,000,000).

6. Cutting over to PlanetScale

Before you cutover, it's good to have confidence that the replication is fully caught up between Supabase and PlanetScale. You can do this using Log Sequence Numbers (LSNs). The goal is to see these match up between the source Supabase database and the target PlanetScale database exactly. If they don't, it indicates that the PlanetScale database is not fully caught-up with the changes happening on Supabase.

You can run this on Supabase to see the current LSN:

postgres=> SELECT pg_current_wal_lsn();
 pg_current_wal_lsn
--------------------
 0/703FE460

Then on PlanetScale, you would run the following query to confirm the match:

postgres=> SELECT received_lsn, latest_end_lsn
             FROM pg_stat_subscription
             WHERE subname = 'replicate_from_supabase';
 received_lsn | latest_end_lsn
--------------+----------------
 0/703FE460   | 0/703FE460

Once you are comfortable that all your data has successfully copied over and replication is sufficiently caught up, it's time to switch to PlanetScale. In your application code, prepare the cutover by changing the database connection credentials to go to PlanetScale rather than Supabase. Then, you can deploy this new version of your application, which will begin using PlanetScale as your primary database.

After doing this, new rows written to PlanetScale will not be reverse-replicated to Supabase. Thus, it's important to ensure you are fully ready for the cutover at this point.

Once this is complete, PlanetScale is now your primary database!

We recommend you keep the old Supabase database around for a few days, in case you discover any data or schemas you forgot to copy over to PlanetScale. If necessary, you can switch traffic back to the old database. However, keep in mind that any database writes that happened with PlanetScale as the primary will not appear on Supabase. This is why it's good to test the database thoroughly before performing the cutover.
